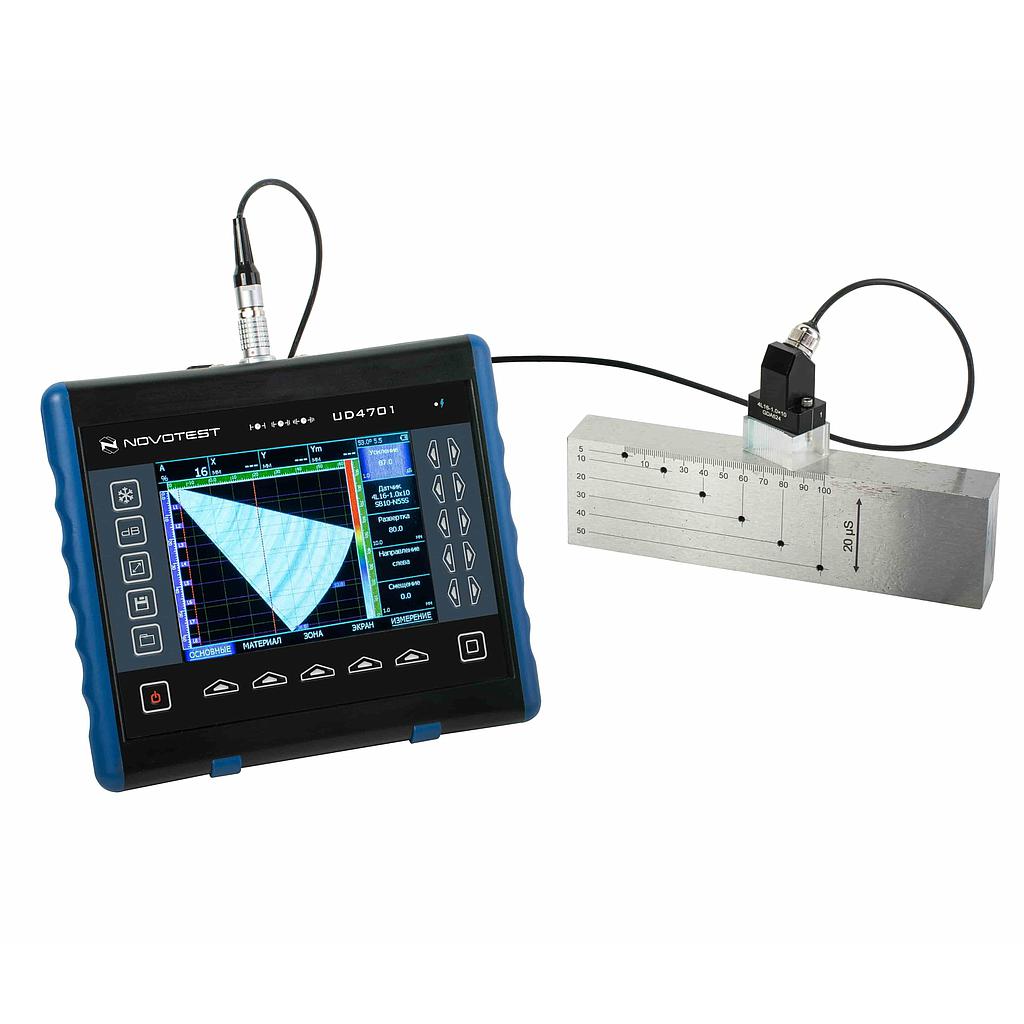

NOVOTEST UD4701 Phased Array Flaw Detector

Features:

16-channel PA with C-SAFT / TFM signal processing

Normal Flaw Detector Mode

TOFD mode

Up to 10-12 hours of battery life

Specification

Weight: 1.4 kg with batteries

Size (H x W x L) :200 mm x 225 mm x 80 mm

Operating temperature range: From -30°C to +55°C

Supply voltage: 15V / 2,5А DC

External power supply: Power Supply 220В AC

Working hours: Not less 10 hours of operation from the built-in battery

Battery: Li-ion 10.8V, 5000 mА/h

Transducer connectors: 2 Х Lemo00,1 Х Lemo 16

Firmware Upgrade: Self-powered by USB

Menu Language: Russian, English

Interface: USB

Memory: 200 settings with A-signal

1000 monitoring protocols and scan results

Display: Color high contrast, TFT 640 x 480 pixels, (130 x 100 mm).

Display of signals on the screen (visualization): А-scan, B-scan, С-scan, D-scan, S-scan, L-scan, TOFD

Digital signal filtering: Yes

Analog Signal Filtering: Yes

Automatic calibration of ultrasonic velocity: Yes

Automatic calibration of the control range for a given seam thickness: Yes

Frequency of recurrences: Is automatically set depending on the set parameters

Sounding impulse: Radio pulse amplitude of 50 V, with adjustable number of periods (0.5-5)

Speed range: 100 – 10 000 m/s

Standard set:

Phased Array Flaw Detector

UT-probes – 2 pcs

Cable for probes

Power supply and charger

Memory card

Calibration certificate

Operating manual

Case

Available options:

Additional UT-probes; Additional cables for probes; Charger; Case for comfortable operating; Calibration blocks
