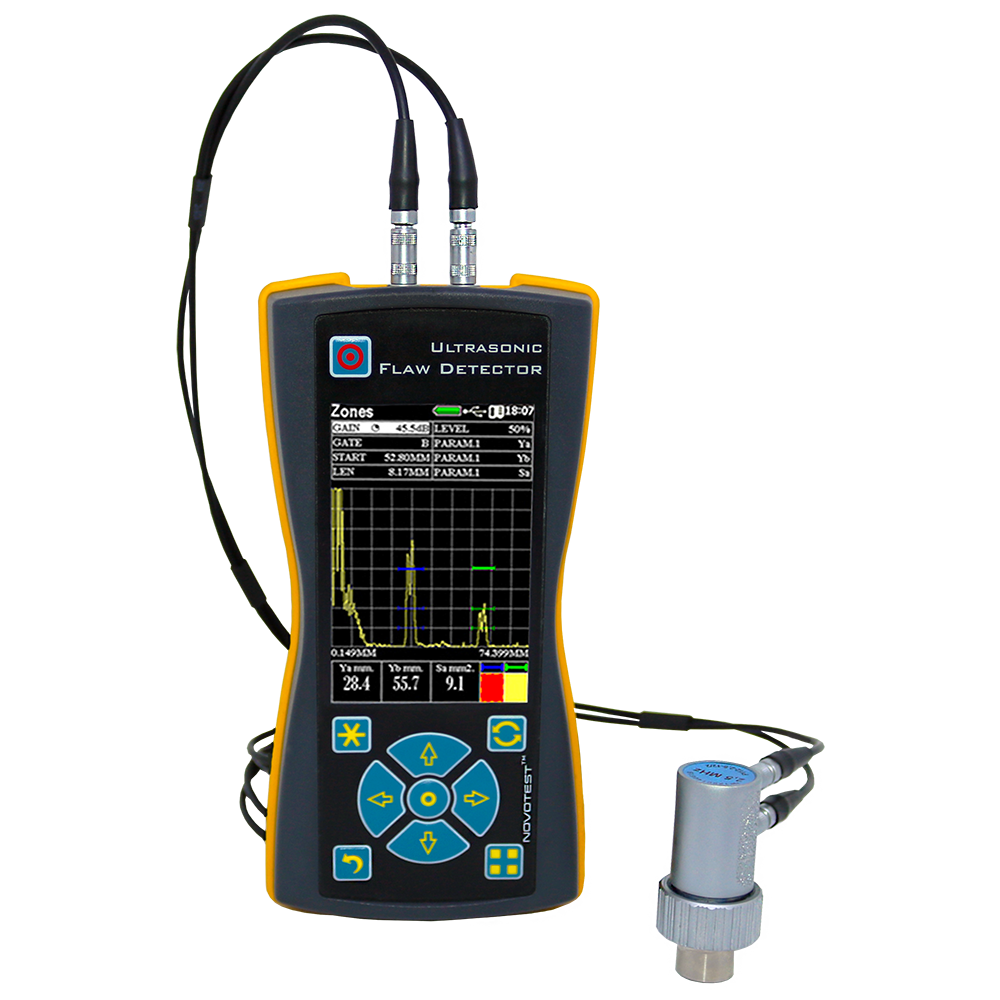

NOVOTEST UD2301 Ultrasonic Flaw Detector

Name: NOVOTEST UD2301 Ultrasonic Flaw Detector
Brand: NOVOTEST
Price: 2918.4 USD
Availability: OutOfStock

ManufacturerNOVOTEST(View more products from this manufacturer)

ModelUD2301

OriginUkraine

Warranty11 months

USD 2,918.40

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Operating frequency range: from 1 to 10,0 MHz

Range of measured time intervals (duration of scanning): from 6 to 1000 µs

Velocity range: 1000 – 9999 m / s

Error of measurement of time intervals: not exceed ± 0,025 µs

Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB: not exceed ± 0,5 dB

Testing gain range: 125 dB

Averaging over the quantity of starts: from 1 to 16

Range of variation of temporal sensitivity adjustment (TVG): 40 dB

Number of control points TVG: 16

Duration of the excitation pulse to the load: from 0,0 to 0,5 µs

Deviation of the amplitudes of input signals in the range from 10 to 100% of the screen height not more than: 1 dB

Setting a delay in the prism of the probe: from 0 to 15 µs

Detection of signals: positive half-wave, radio mode

Measurement units: mm: μs (or inch by request)

Menu language: English: Russian: *additional languages available by request

Standards: EN 12668; ASTM E1324; EN 55011; EN61000-6-2:2001; EN 61010-1:2014 (EN 61010-1:2010); EN 60529:2014; EN ISO 16810:2016; SOU NNEC 027:2014; SOU NNEC 032:2014; SOU NNEC 038:2017

Dimensions (W*H*L): 80*162*38 mm

Weight, not more: 250 g (without batteries)

Description:

- An ultrasonic flaw detector is designed to search for voids and inhomogeneities inside the materials under testing with ultrasound. It is the most common device in the world for non-destructive testing of metal (and other materials with low attenuation of ultrasonic waves) products in production, as well as objects in operation.

- Ultrasonic Flaw Detector NOVOTEST UD2301 is a powerful, ergonomic, portable device that has all the functions of a general industrial ultrasonic flaw detectors and can be used in laboratories and workshops, and is perfect for field use

The main advantages of the Ultrasonic Flaw Detector NOVOTEST UD2301:

- Superbright display with which it is comfortable to work outdoors on a sunny day;

- Frequency range from 0 to 10 MHz, with smooth adjustment;

- Display of a scale of scanning in microseconds and millimeters;

- Construction and processing A-scan and B-scan;

- The presence in the device of the operating mode of the DAC curves (construction of 16 points);

- Existence in the device of TVG mode (construction of 16 points);

- DGS function, with automatic calculation of the equivalent reflector size;

- Archive of measurements, settings, transducers with the ability to transfer data to a PC;

- Any side display orientation options that allow user to work in any position of the device;

- The device operates on standard AA batteries, as well as on conventional batteries, which makes them easy to replace;

- The NOVOTEST UD2301 flaw detector can be powered by a universal mobile battery (power bank) via a mini USB connector;
