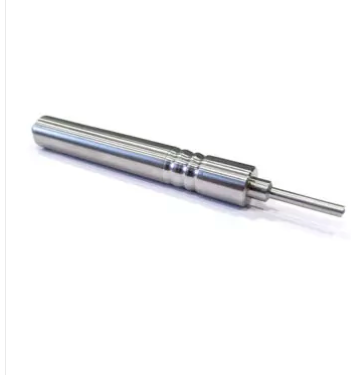

NOVOTEST U2L UCI Probe (370~1740 MPa)

Indenter type: Diamond

Test object requirments

Thickness from 1mm (or less with stand)

Weight from 0.1kg

Material: fine and medium grained ferrous and non-ferrous metals

Measuring range

HRC: 20~70

HB: 90~650

HV: 230~940

Tensile strength, MPa: 370~1740

User calibrations for any range (for example: HV10-2000)

Measurement accuracy

HRC: ±2

HB: ±10

HV: ±15

Scales

Precalibrated for HRC, HB, HV, MPA, HRA, HRB

Can be calibrated for any other

Materials

Precalibrated for steel

Can be calibrated for any other metals

Standard: ASTM A1038

Operating environment

Temperature: -20°C ~ 50°C

Humidity: 30% ~ 80% R.H

Weight (without cable), g: 175

Dimensions, mm: 170*25
