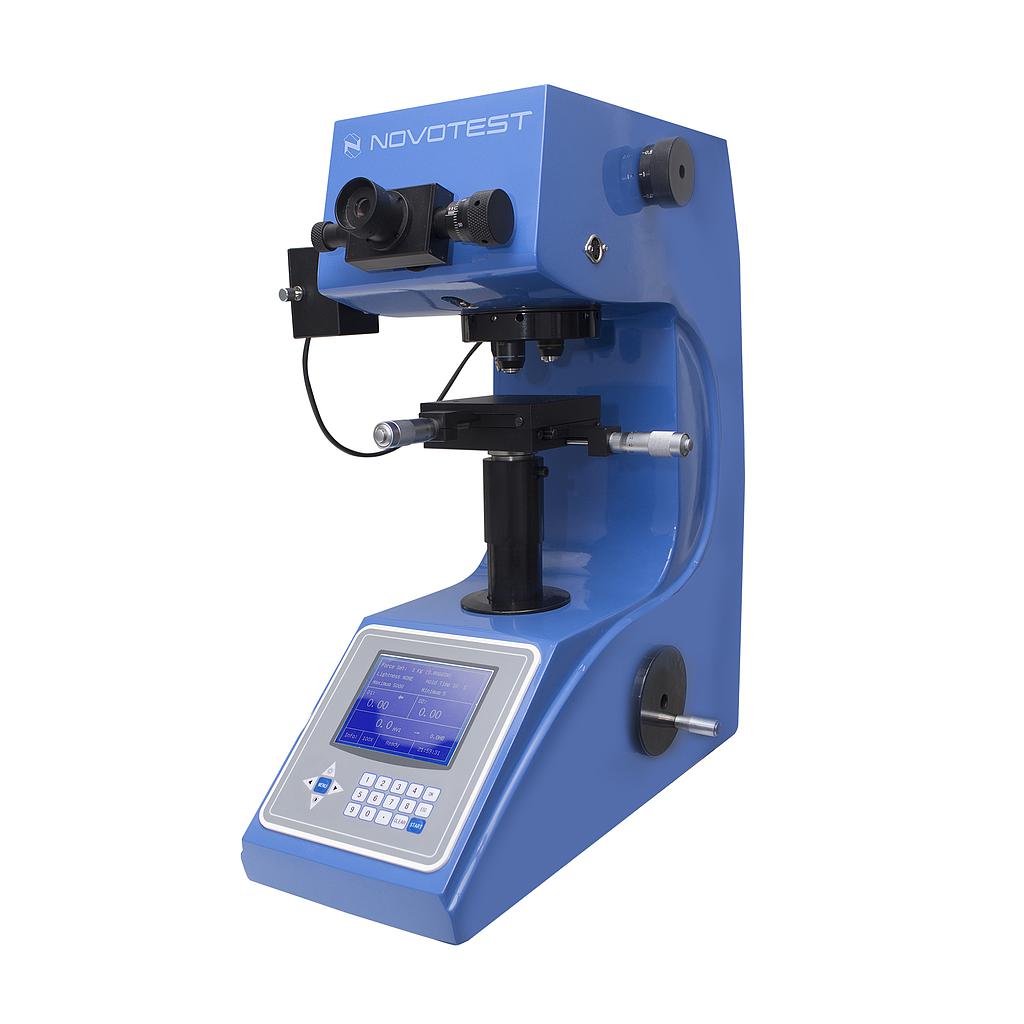

NOVOTEST TS-MCV Micro-Vickers Hardness Tester (5-3000 HV)

Indenter: Vickers: four-sided diamond pyramid (136 °)

Scales:

HV0.01

HV0.025

HV0.05

HV0.1

HV0.2

HV0.3

HV0.5

HV1

Conversion scales:

HRA

HRB

HRC

HRD

HRF

HV

HK

HBW

HR15N

HR30N

HR45N

HR15T

HR30T

HR45T

Testing load:

10gf (0.098N)

25gf (0.245N)

50gf (0.49N)

100gf (0.98N)

200gf (1.96N)

300gf (2.94N)

500gf(4.9N)

1000gf (9.8N)

Hardness range: 5-3000 HV

Measuring time: 5~99 sec

Testing materials:

+ Carburized layer, ceramic, steel, non-ferrous metals;

+ Sheet, metal foil, plating, fine specimen, surface hardened layers;

+ Coatings, nitride layer, the gradient measurement of carburized layer and hardened layer

+ Hardness measurement of thin and small objects

Max height of test sample: 90 mm

Max depth of test sample: 120 mm

Optical measuring system:

+ Objective lenses: 10X, 40X

+ Eyepiece: 10X

+ Total magnification: 100X, 400X

+ Measuring range: 0-200µm

+ Index value: 0.25 µm

Data output: LCD display; Built-in printer; RS-232 interface

Body color: Blue; White

Recommended operating conditions:

+ Air temperature: 0…+40 °С

+ Air pressure: 94 – 106.7 kPa

+ Humidity: up to 65%

Net weight: 60 kg

Gross weight: 70 kg

Package dimensions: 580*410*870 mm (L*W*H)

Standard package

Micro-Vickers Hardness Tester NOVOTEST TS-MCV

Vickers indenter: four-sided diamond pyramid (136 °)

Weights roller

Weight (6 pcs.)

40X objective lens

10X micrometer eyepiece

Manual XY testing table

Сhuck testing platform

Flat testing platform

Сlamping testing platform

V-shapep testing table

Standard Micro Vickers hardness test blocks (2pcs.)

Horizontal scroll bar

Bolt adjustor (4 pcs.)

Fuse (2 pcs.)

Operating manual

Calibration certificate

Transportation box
