Testing load: 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf (4.9N), 1000gf (9.8N)
Microscope zoom: 100X (for observing): 400X (for measurement)
Output data: Integrated printer
Time measuring: 0 ~ 60 sec (can be setted with step 5 sec)
Instrument dimensions: 405*290*480 mm (L*W*H)
Net weight: 25 kg
Maximum height of test sample: 85 mm
Maximum depth of test sample: 95 mm
Power supply: 220V ± 5%, 50 ~ 60 Hz
Standard package: Bench hardness tester; Vickers indenter; Microscope; Conversion table; Standard hardness tests blocks; Package; Operating manual
Option Rockwell Hardness Test Block HRC (HRA or HRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD
Application:

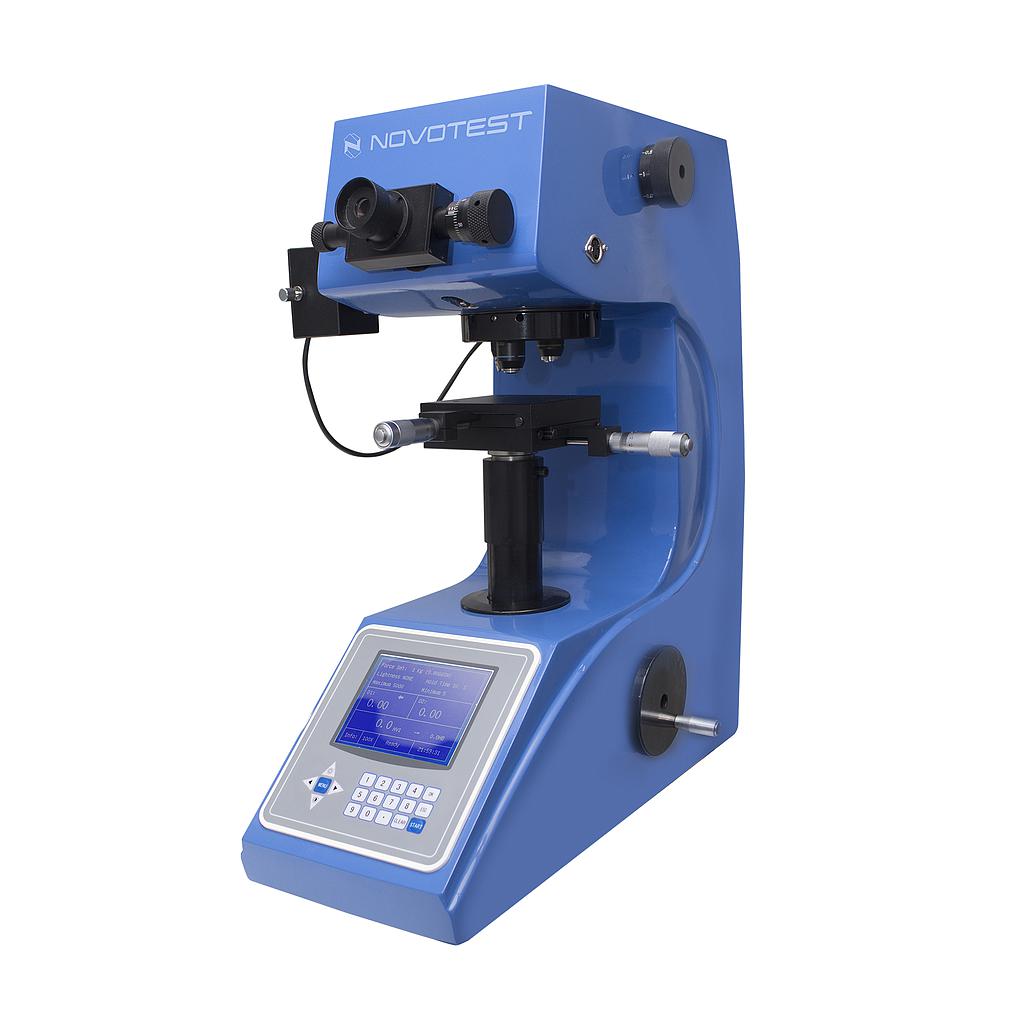

Micro Vickers hardness tester is used for high precision testing of:
- carburized layer, ceramic, steel, non-ferrous metals;
- sheet, metal foil, plating, fine specimen, surface hardened layers;
- coatings, nitride layer;
- carburized layer and hardened layer;
- parallel surfaces;
- thin and small objects, when use of other hardness testers is impossible.
Advantages:
- Automatic data input
- High measurement accuracy
- The device is handy and easy to set up and operate
- Built-in printer
- Large LCD display
- Integrated microscope for measuring the obtained diagonals of the imprints
- Hardness values are calculated fully automatically
- Allows to recalculate the obtained value into other hardness scales automatically
- Allows user to maximize the efficiency of the using portable hardness testers, especially UCI hardness testers, because Micro Vickers hardness testers implemented direct method of hardness measuring
