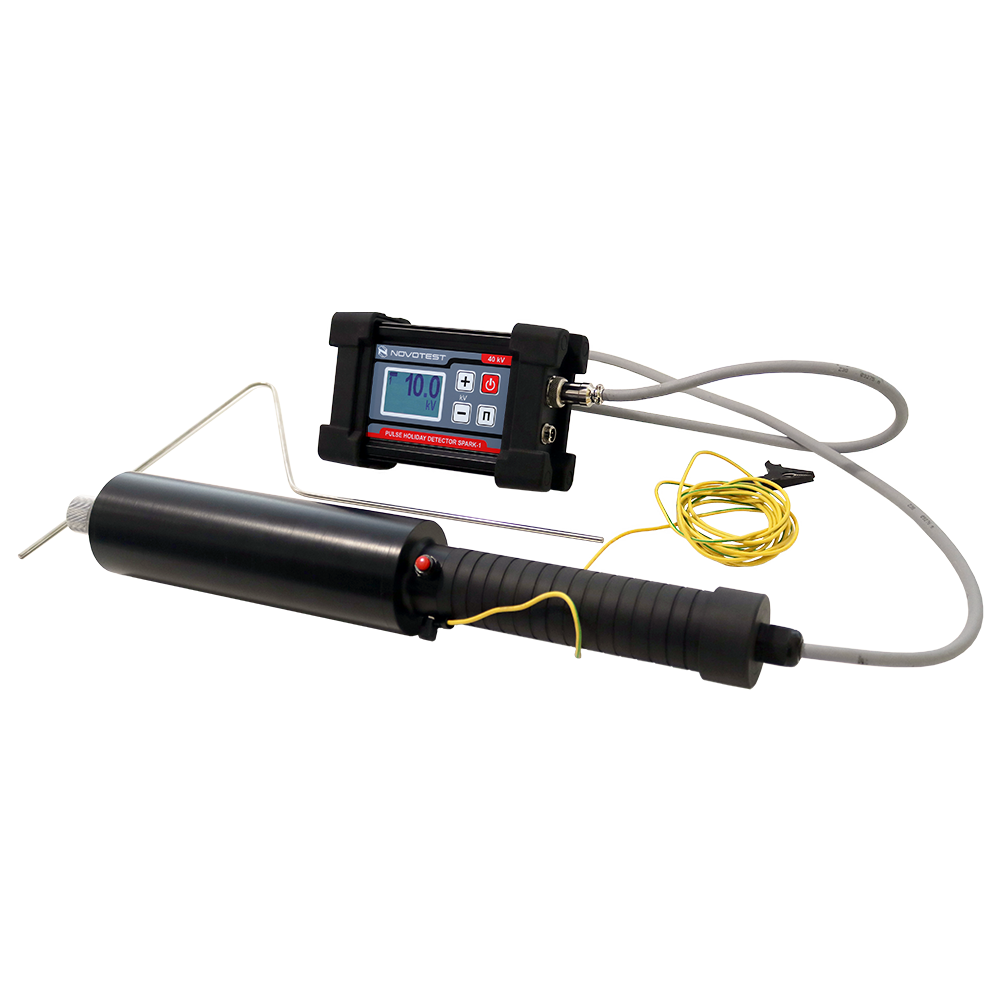

NOVOTEST SPARK-1 Pulse Holiday Detector

Measurement thickness range of tested coatings: 12 mm

Measurement diameter range of the detected defects: 0,1 mm

Operation speed of electrode: 25 cm/s

Output voltage: 1.5 – 36 kV

Pulse repetition frequency: 30 – 35 Hz

Batteries life: 5 h

Weight of high-voltage transformer: 0,8 kg

Weight of electronic unit: 3,7 kg

Total weight with kit and package: 7 kg

Application:

- Pulse Holiday Detector NOVOTEST SPARK-1 is a device for detecting defects (thinning, microholes, cracks, etc.) in dielectric coatings on metals.

- The principle of operation of the device is based on the electrospark method. A probe with electrode connected to one pole of the voltage source scans the surface of the tested object directly along the coating. The second pole of the voltage source from the ground connector is connected directly to the metal structure. The electronic unit fixes the gaps by voltage between the electrode and the conductive base.

Advantages

- Reliability

- Small size and lightweight

- High capacity batteries

- Long battery life with enhanced battery

- Accurate digital voltage and sensitivity settings

- Indicator of batteries charge

- Sound defect signaling
