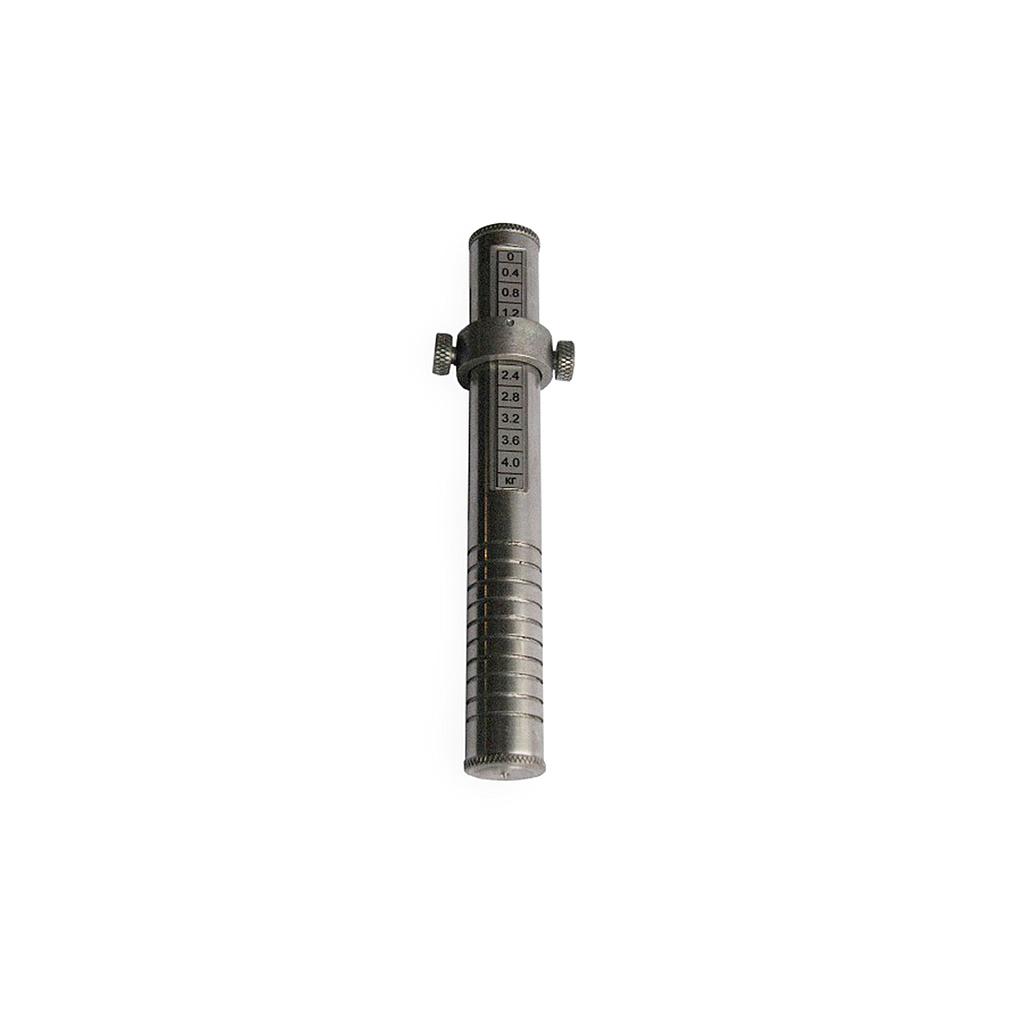

NOVOTEST SH-1518 Scratch Hardness Coating Tester

Indenter: ball tip with 1 mm diameter

The load range, F: up to 2,5 kg (with steps 0,2 kg) – model 1

up to 4,0 kg (with steps 0,4 kg) – model 2

Operating temperature range: -10 ° C to +40 ° C

Total length: 160 mm

Diameter: 16 mm

Weight, net: approx.: 0,25 kg

Description:

- Scratch Hardness Coating Tester NOVOTEST SH-1518 (ball type) is used for hardness testing of coatings (paint, mastic, plastic and others) through determining the hardness resistance to indentation of the ball tip diameter of 1 mm. Scratch Hardness Coating Tester NOVOTEST SH-1518 is designed according to ISO6441. Also it is used for testing of the coating resistance to the  scratching (ISO1518).

- The device can be used on uneven surfaces, surfaces with curvature and limited sizes.

- The device has lightweight and can be carried in the pocket, which allows users to use it even during manufacturing processes.

- User can set the load force through changing the spring tension and secure it with locking screws.
