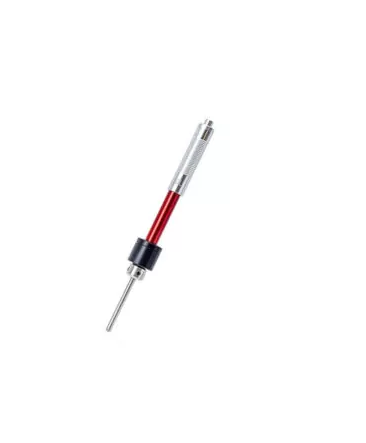

Application: For measurements in extremely confined spaces or at the base of grooves
Indenter type: Tungsten carbide
Test object requirements
Minimum sample weight:
Of compact shape: 5 kg (11 lbs).
On solid support: 2 kg (4.5 lbs).
Coupled on plate: 0.05 kg (0.2 lbs).
Minimum sample thickness:
Uncoupled: 25 mm (0.98 inch).
Coupled: 3 mm (0.12 inch).
Surface layer thickness: 0.8 mm (0.03 inch).
Material: low, fine and medium grained ferrous and non-ferrous metals
Measuring range
HLDL: 300-800
HRC: 20~70
HB: 90~650
HV: 230~950
Tensile strength, MPa: 370~1740
User calibrations for any range (for example: HV10-950)
Measurement accuracy
HLDL: ±10
HRC: ±2
HB: ±10
HV: ±15
Scales
Precalibrated for HRC, HRA, HRB, HB, HV, MPA
Can be calibrated for any other (Shore HS, etc.)
Materials
Precalibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
Can be calibrated for any other
Standard: ASTM A956
Compatible models:T-UD3 (Lab), T-D3 (Lab), T-UD2 (Lab), T-D2 (Lab)
Operating environment
Temperature: -20°C ~ 50°C
Humidity: 30% ~ 80% R.H
Weight (with cable), g:111
Dimensions, mm:200*20
