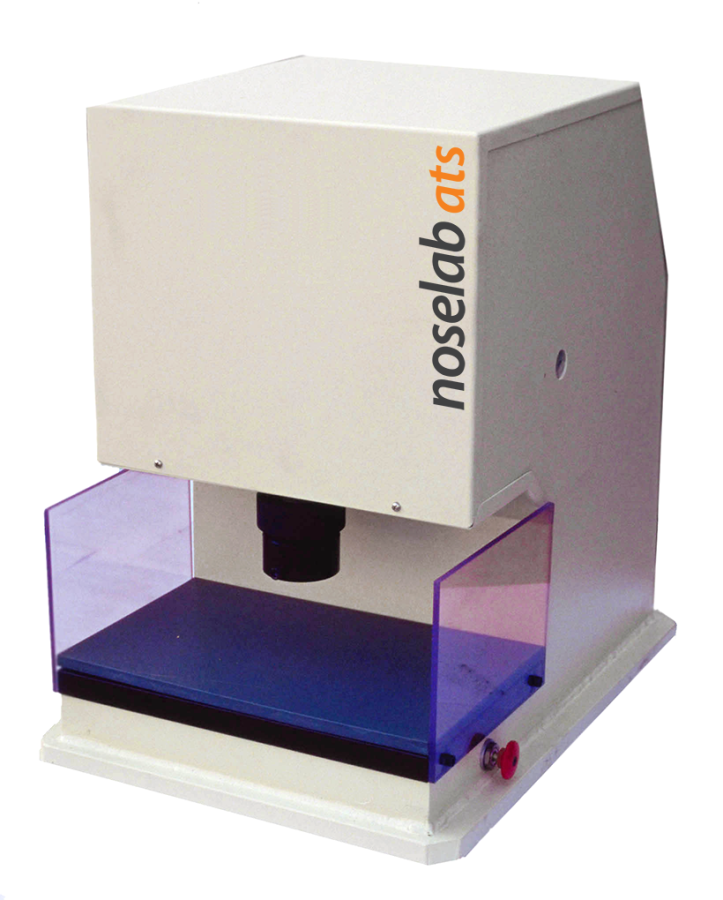

Dimensions of the sample holder plate (WxD) mm 320 x 200
Force on the die head axis 55 kN (with 6 bar air pressure)
Max cutting thickness approx. mm 16
Max stroke of the die head mm 30
Max useful clearance between die head and sample plate mm 70
Grounded worktop screwed in the mainframe, interchangeable with worktops having different sizes
Adjustable die head support, suitable for 25 mm dia. connections; smaller connections may be inserted with spacers, available on request
2-push-button control positioned under the worktop, easy to reach and dust-free design
Safety cutting operations are possible only by simultaneously pressing the two side push-buttons
Plastic cover for worktop included
Overall dimensions (WxDxH) mm 500 x 370 x 510
Weight approx. 130 Kg
Supply 6 bar industrial air
