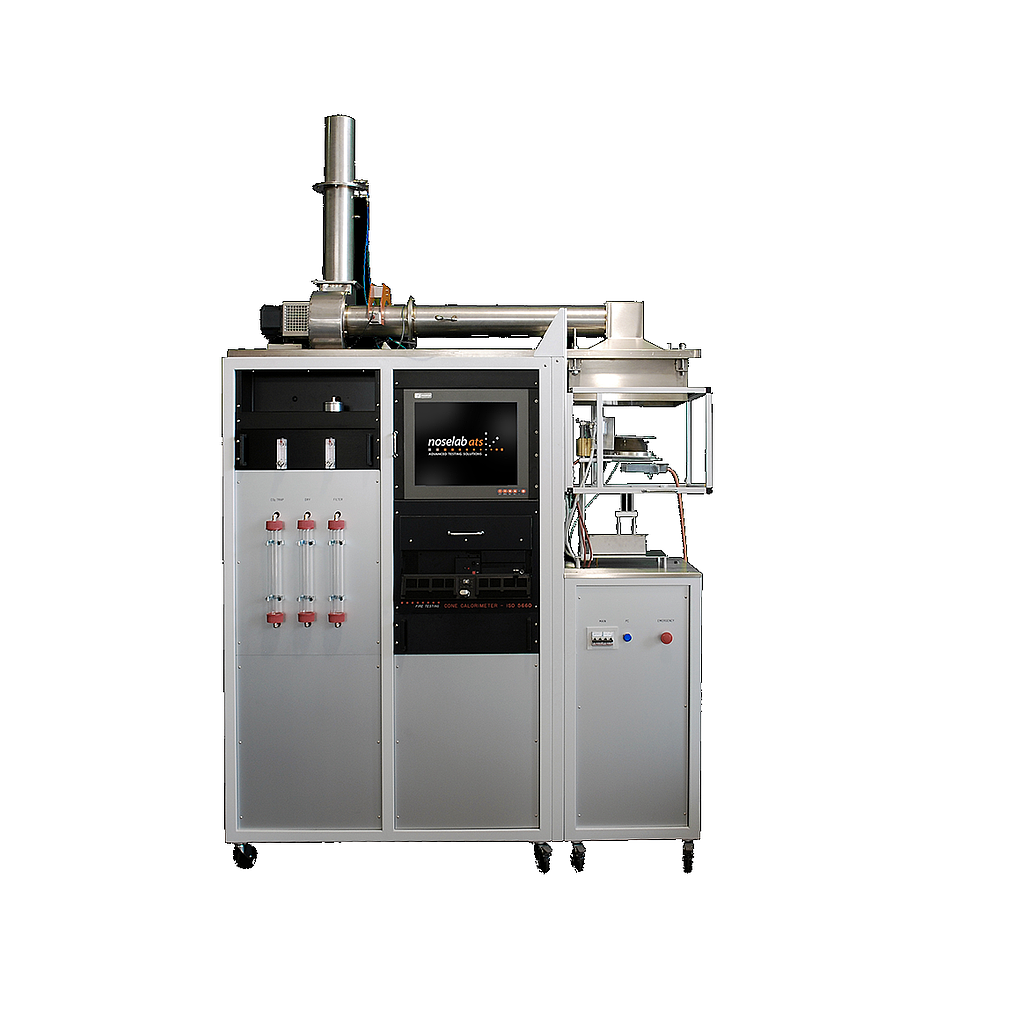

NOSELAB ATS GA01 Cone Calorimeter

Heat release velocity (kW/m²)

Real combustion heat (MJ/kg)

Mass loss velocity

Ignition time

Smoke density

Soot sampling

CO₂ and CO production

Priming time

Other details relative to combustion

Dimensions: 1600 (w) × 600 (d) × 1700/2000 (h) mm

Weight: 250 kg

Power supply: 380 Vac, 50 Hz, three-phase, 32 A

Gas type: Methane (purity 99.5%)

Nitrogen (oxygen free)

CO₂ N₂ (5%–10%)

CO N₂ (2%–3%)

Water: 2 ~ 3 bar

Air: 2 ~ 3 bar

Standards

ASTM E1354

ISO 5660 Part 1 / Part 2

BS 476-3664

Datasheet
