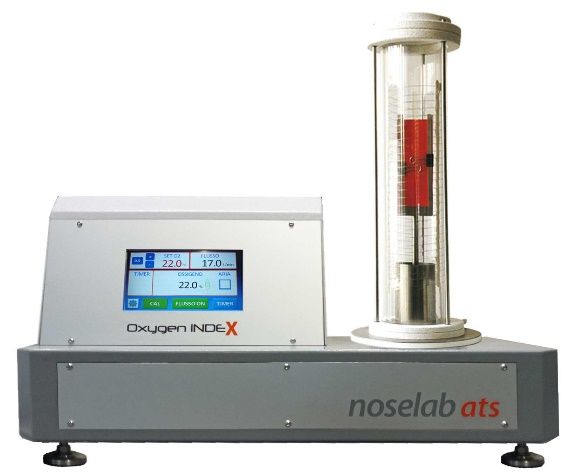

NOSELAB ATS EA05 High temperature Oxygen Index

Technical Features

Pyrex column with built-in heating resistance complete with outer safety glass column

Detection of O₂ percentage through paramagnetic transducer (O₂ accuracy <0.1%)

Direct reading measurement 7" colour display for oxygen %, mixture flux l/min

Automatic control of the flow with mass flow

Microprocessor-governed operations

Air addition to save consumption in O₂ high concentration mixtures

Automatic calibration (0 and 100%)

Propane gas regulation and cut-off valve

Specimen surface temperature indicator complete with detection probe

Inconel steel detection thermocouple

Thermoregulator for the mixture pre-heating temperature control up to 400 °C

Thermoregulator for temperature control inside the glass column

PID regulators

The test of material takes place in a heated column in which both the incoming gas and the gas passing up the column are heated, providing information on the effect of a range of temperatures on the OI value and a better understanding of material behaviour over a temperature range

Supplies

Power 230 V 50 Hz single phase

Oxygen

Nitrogen

Propane

3 bar dry industrial air

Generals

Dimensions: 300 × 650 × 700 mm

Weight: 20 kg

Power: 230 V, 50 Hz

Reference Standards

ASTM D 2863

ISO 4589 -3
