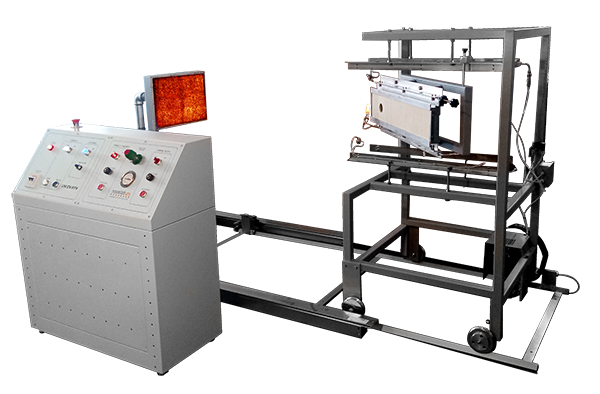

NOSELAB ATS BA01 Flame Resistance Test

Main features and configuration

Radiant panel: Refractory radiant panel producing max radiation of 17 Watt/sqcm (14 Kcal/sqcm) for temperature up to 850°C, supplied with propane gas or liquid gas

Ignition system: Electric primer flame to start the radiant panel with a high voltage transformer

Specimen support: Three different positions for specimens: horizontal, vertical and floor

Specimen frames: 2 steel specimen support frames

Motorized support: Motor operated specimen support structure sliding on tracks at the beginning and at the end of the test

Gas control: Centrifugal fan to activate the air/gas mixture feeding the panel

Instrumentation: Pressure adjustment and reducer to reach the incandescence phase required for test performance

Control system: Control board for power supply, gas and air supply and regulation, panel ignition and fan closing, installed remotely outside the test area

Radiometer: Water radiometer with ISO calibration certificate, range from 0 to 60 kW/sqm, microvolt output, digital indicator with built-in RS232 port and data logging function

Measurement tolerance: ±1 kW/sqm over 10 kW/sqm, ±0.5 kW/sqm below 10 kW/sqm

Required supplies

Gas supply: Propane gas or LPG

Air supply: Air

Water supply: Water

Power supply: 220V 50Hz 1 kVA

Optional accessories

Pyrometer: Optical pyrometer for temperatures up to +1000°C

Fume exhaust: Fume exhaust system with hood and piping on request

Anemometer: Thermo anemometer range 0–150°C / 0–20 m/s

General

Dimensions: 90 × 320 × 140 h cm

Console dimensions: 90 × 40 × 100 h cm

Weight: 80 kg

Console weight: 20 kg

Datasheet
