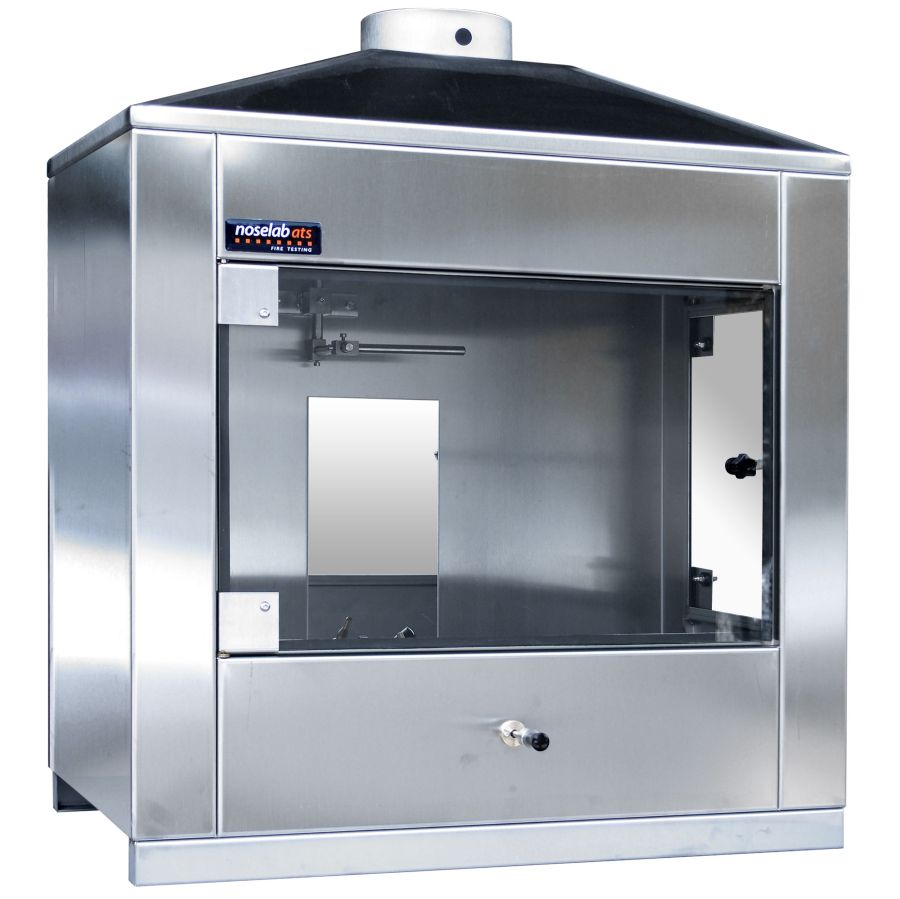

NOSELAB ATS AA06 Horizontal Flammability Test Cabinet

Parameters to Survey

Post-combustion time

Post-incandescence time

Measurement of the damaged zone

Emission of fire drops

Emission of fired or red-hot particles

Technical Specifications

Stainless steel AISI 304 combustion chamber with bottom grid and two glass doors for test control

Burner BR3 for propane gas equipped with micrometric flame adjustment

90-degree specimen support sliding system

Flame height measuring device (20 mm)

Flame spacers ISO/DIN (16 mm, 5 mm) UNI (18 mm)

Mirror inside

Tray for molten dripping

Filter paper (50 pcs) 50 × 100 mm

Cabinet dimensions 700 × 400 × 800 mm (W × D × H)

Weight approximately 35 kg

Accessories

Specimen holder in stainless steel in compliance with the standard (to your choice)

ISO 11925-2, samples 150 × 295 mm

DIN 4102 B2, samples 90 × 190 + 90 × 230 mm

UNI 8456 & 8457, samples 104 × 340 mm

More specimen holders available on request

Table timer with liquid crystal display, resolution 1/100 s, second, dual mode, time pause function, stop and restart counting without zeroing

Hot wire thermo anemometer with telescopic probe, air speed range 0–20 m/s

Temperature range of probe from −20 °C to +70 °C

Resolution 0.01 m/s – 0.1 °C

Working temperature −20 °C to +50 °C

Power supply 1 × 9 V battery
