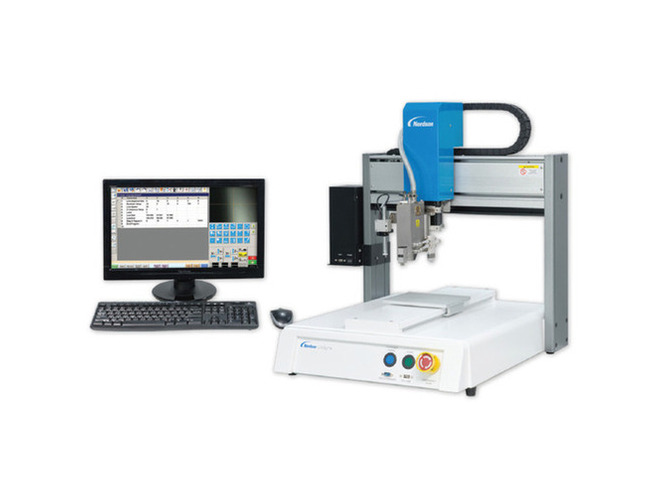

Nordson Unity 2 Automated dispensing systems (500/250 mm/sec, 200/200/50 mm)

Maximum Working Area (X/Y/Z: 200/200/50 mm (7.8/7.8/1.9 in.)

Workpiece Payload: 5 kg (11 lb)

Tool Payload: 3 kg (6.6 lb)

Maximum Speed (per second): 500/250 mm (19.6/9.8 in.)

Unit Weight: 21 kg (46.2 lb)

Dimensions (WxHxD): 375x414x510 mm (14.7x16.2x20 in.)

Drive System: 3-phase micro stepping motor

Memory Capacity: 100 programs

500~50,000 points/program

Data Storage: CF card, USB

General Purpose I/O: 8 inputs/8 outputs (16/16 optional)

Drive Method: PTP and CP

Power Supply: Auto-switching, AC100–240 VAC, 200 W

Interpolation: 3 axes (3D space)

Repeatability: ±0.02 mm

Working Temperature: 10–40° C (50–104° F)
