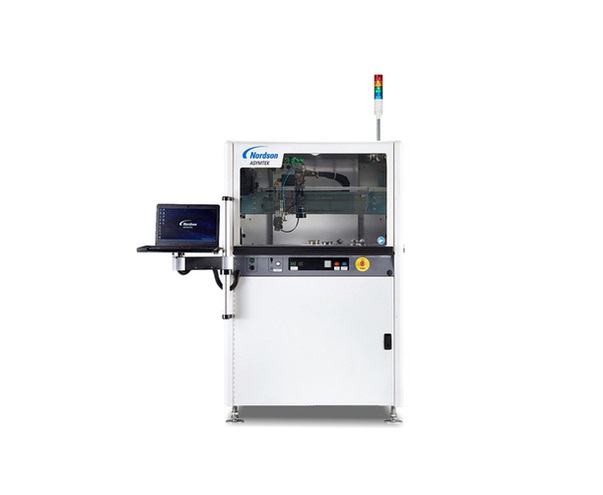

Nordson Select Coat SL-940 Conformal coating system (1.0 m/s; 0.025 m/s)

Motion System

Type: Closed-loop servo motors with encoders

X-Travel: 500 mm

Y-Travel: 525 mm

Z-Travel: 100 mm maximum

Encoder Resolution: 0.005 mm. (0.0002 in.)

X-Y Velocity: 1.0 m/s (39.4 in./s)

X-Y Acceleration: 1 g peak with S-curve jerk control

Z-Axis Velocity: 250 mm/s (10 in/s)

X-Y Repeatability: 0.025 mm. (0.001 in.), 3 sigma

Z-Axis Repeatability: 0.025 mm. (0.001 in.), 3 sigma

X-Y Resolution: 0.010 mm. (0.0004 in.), 3 sigma

Z-Axis Resolution: 0.025 mm. (0.001 in.), 3 sigma

Positional Accuracy: 0.075 mm. (0.003 in.), 3 sigma

Conveyor

In-Line: Standard chain conveyor

Motor Driven: Width Adjustment 35 to 475 mm (1.4 to 18.7 in.)

Maximum Clearance: 100 mm (4 in.) above and below PCB

Maximum Pallet/PCB Weight: Standard: 5 kg (11 lbs.)

Adjustable Tooling Rails

Width Adjustment: 35 to 475 mm (1.4 to 18.7 in.)

Maximum Clearance: 100 mm (4 in.) above and below PCB

Maximum Pallet/PCB: Weight Standard: 5 kg (11 lbs.)

Tooling Plate is Available: Aluminum; 5 mm (0.2 in.) thickness; 508 x 508 mm (20 x 20 in.)

Aluminum Extrusion Profile: The rail spacing is adjusted by moving the back rail

Computer: Laptop or IPC

Software: EasyCoat® software: Windows® 10 operating system

Fluid Delivery Methods

Precise Non-Atomized Conformal Coating: Select Coat® SC-280 Film Coater (circulating and non-circulating)

Versatile, Atomized Spray Coating:

Select Coat® SC-300 Multi-Mode applicator

Select Coat® SC-350 Select Spray applicator

Highly Selective, Precision Jet Coating: SC-400 PreciseCoat® conformal coating jet

Versatile Valves: DV-0X Series
