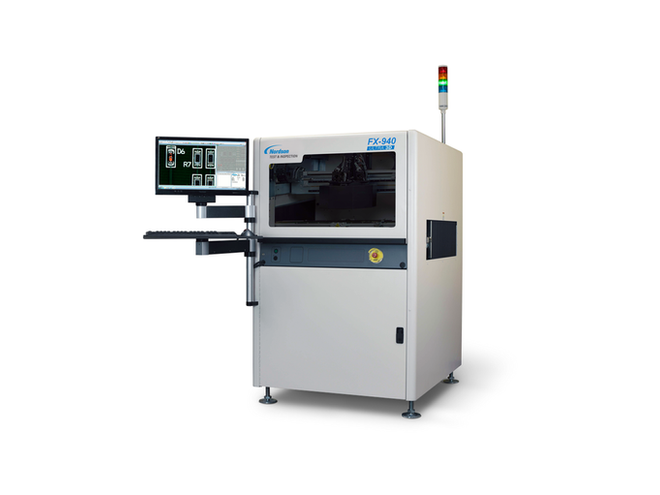

Nordson AOI FX-940UV In-Line Optical Inspection (110-220 VAC, 50/60 Hz, 15 amps)

Throughput: Up to 30 sq. in./ sec. (194 sq. cm)

Maximum Board Size: 27.5” x 23” (698 mm x 584mm)

Maximum Inspection Area: 17” x 18.5” (437mm x 470mm)

Clearance: 4” (100mm) top and bottom

Optional: Upgrade 4 side angle cameras

Defects Detected: Coatings and dispensed material coverage, non-coverage, cracks and delamination

Software

Algorithms: Color, OCV, OCR, barcode recognition, both image and rule-based algorithms

Data Requirements: None

CAD Translation Package: Not required

Programming Skill Level: Technician or operator

Operating System: Windows 10

Off-line Software: Optional - Rework, Review and Program Creation

SPC Software: Real-time local and remote monitoring of first pass yield, defect trends, and machine utilization.

Hardware

Lighting: Proprietary UV, Coax and White LED lighting

Imager: Megapixel color camera: 12 or 20 μm pixel size

Resolution: 2448 x 2048

Facilities

Power: 110-220 VAC, 50/60 Hz, 15 amps

Footprint: 39” x 52” x 60” (1000mm x 1329mm x 1531mm)

Weight: 950 lbs (430 kg)

Machine Installation: < .5 hour

Features

• Quick set-up with Auto Train

• Megapixel color imaging

• Proprietary lighting

• Optional side angle cameras

Automated Inspection for

• Conformal coat coverage

• Micro Coatings

• Flux coverage

• Selected areas of non-coverage

• Delamination / cracks and bubbles

• SPC, barcode reading and archiving

of inspection results

• Includes SMT and THT component inspection

Brochure
