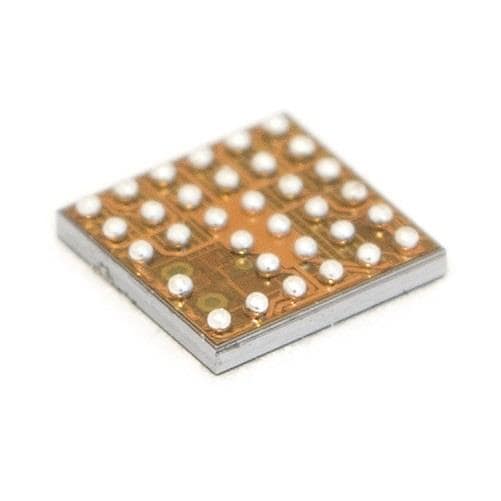

Nordic Semiconductor nRF52811-CAAA-R Bluetooth Bluetooth 5.1 Multiprotocal

Core: ARM Cortex M4

Technology: Si

Sensitivity: - 96 dBm

Unit Weight: 106 mg

Output Power: 4 dBm

Data RAM Size: 24 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: PDM, PWM, SPI, TWI, UART

Mounting Style: SMD/SMT

Number of I/Os: 15 I/O

Maximum Data Rate: 2 Mbps

Operating Frequency: 2.4 GHz

Program Memory Size: 192 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Maximum Clock Frequency: 64 MHz

Supply Current Receiving: 4.6 mA

Supply Current Transmitting: 4.6 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
