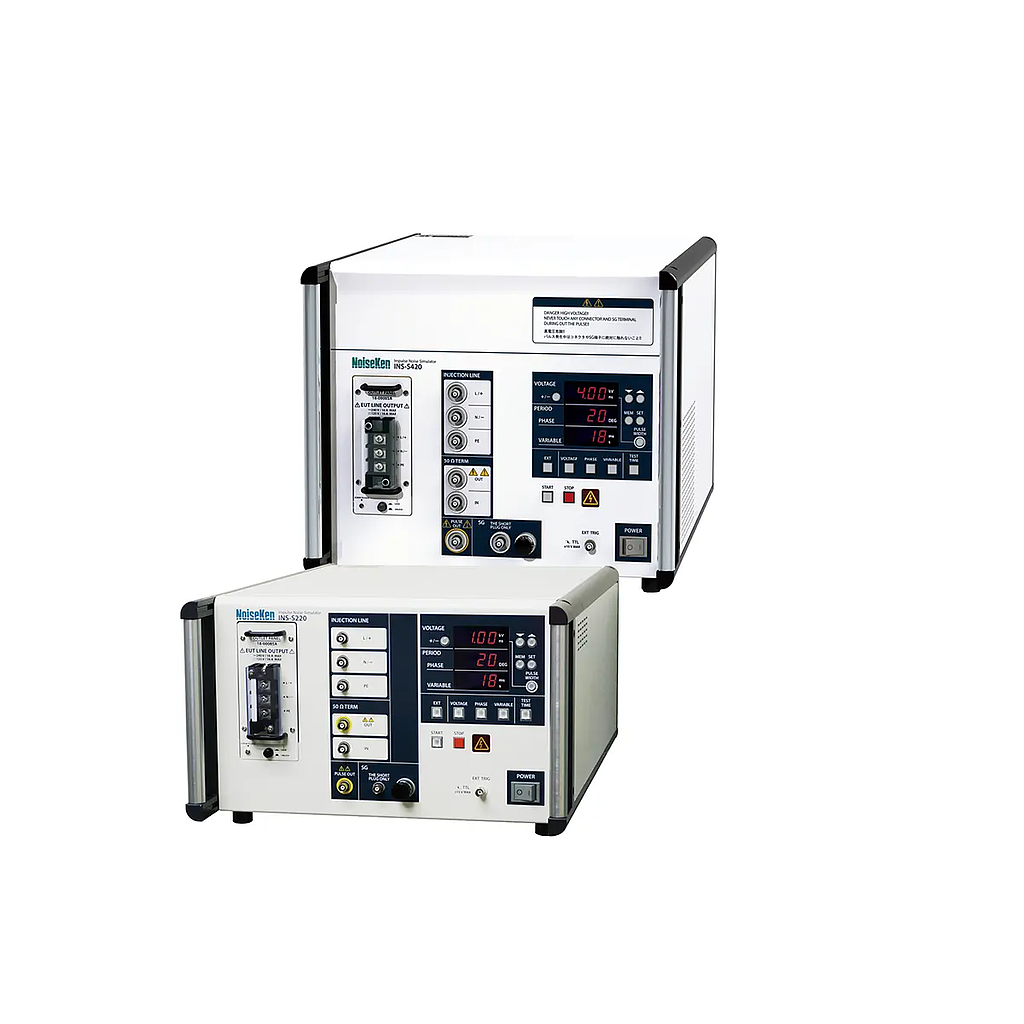

NOISEKEN INS-S420 Impulse Noise Simulator

Pulse settings-2

Pulse output voltage: 0.50kV～4.00kV ±10%　0.01kV step

Pulse width: 50ns ±15%、 100ns～1000ns ±10%　50ns step

Output voltage: 0.5～4.00kV±10％　（10V step）

Polarity: + / −

Rise time: ＜3ns

Output impedance: 50Ω

Terminal resistance: 50Ω

Pulse repetition modes

LINE PHASE: 50Hz/60Hz injection phase angle 0～360°±10°（1°step）

synchronized with L-N of EUT supply or external CDN

VARIABLE: 10ms～999ms ±10 %

EXT TRIG:

Period：>10ms

Input signal level：TTL/open collector negative logic

Pulse width：>1ms

When LINE PHASE mode is selected and there is an input with a period of 16 to 20 ms, it is recognized as a zero-cross sync signal for external CDN.

1 SHOT:

Single pulse generation each time the 1 SHOT button is pressed.

Synchronized (phase angle set on the PHASE control) or asynchronized pulse period.

Memory storage: 5 tests

Test time: 1s ～ 999s ±10%　1s step

Coupling switch: L(+), N(－), PE／PULSE OUT　*manual switch by coaxial cable

Coupling mode: common-mode / normal-mode　*manual switch by short plug

EUT power capacity: Single phase AC240V / DC125V 16A 　(L(+), N(－), PE)

External control: RS-232C compliant optical communication

Power supply: AC100～240V 50Hz/60Hz

Operating temperature /humidity: 15～35℃ / 25～75％

Dimensions / weight: (W) 430 x (H) 349 x (D) 540mm (protrusions excluded) / approx. 23kg

HV coaxial cable connector: NMHV Noiseken custom type
