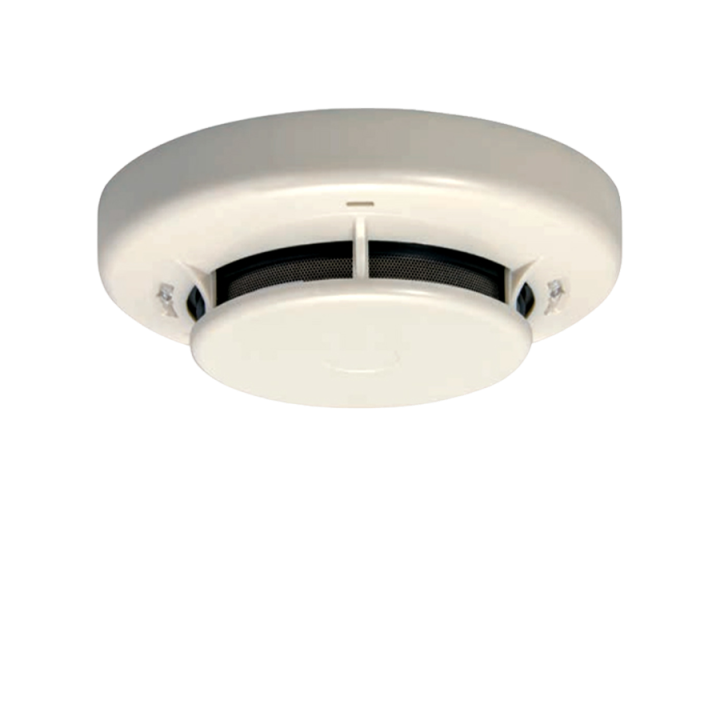

NOHMI FDKU033-D Multi-criteria Analog Addressable Smoke Detector (5.1 ~ 11.0 %/m)

Working voltage range: 22.0 to 24.0 V

Standby current: 250 μA

Alarm indicator: 2 LEDs

Alarm indicator current: 1.5 mA D.C

Alarm set-point range: 5.1 to 11.0 %/m (1.57 to 3.50 %/foot)

Installation temperature range: 0°C to 49°C (32°F to 120°F)

Operating relative humidity range: 0% to 93% (Non-condensing)

Start-up time: Max. 1 sec.

IP rating: IP42

Color: Eggshell White

Weight (without base): 84 g (2.96 oz)

Dimensions (without base): Height: 28.7 mm (1.13 inch), Diameter: 99 mm (4.0 inches)

Remote indicator: N/A

Detector removal tool: FZC014
