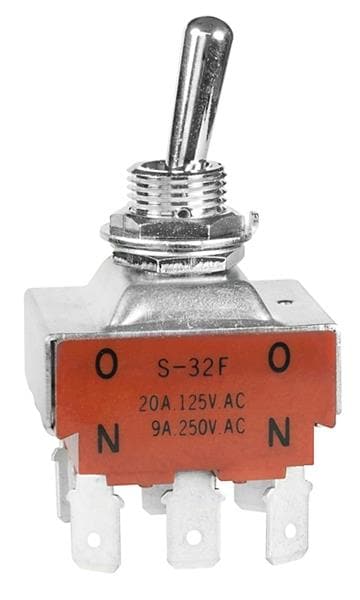

NKK Switches S32F Water tight medium/high capacity standard size toggles 3PDT ON-NONE-ON QUICK CONNECT

Life: 25000 Cycle

Actuator: Toggle

Illuminated: Non-Illuminated

Unit Weight: 58.484 g

Bushing Size: M12

Contact Form: 3PDT

REACH - SVHC: Details

Terminal Seal: Unsealed

Actuator Style: Round

Current Rating: 20 A

Mounting Style: Panel Mount

Actuator Length: 17.5 mm

Contact Plating: Silver

Number of Poles: 3

Switch Function: ON - ON

Contact Material: Silver Alloy Capped on Copper

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Quick Connect

Voltage Rating AC: 125 VAC

Voltage Rating DC: 30 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
