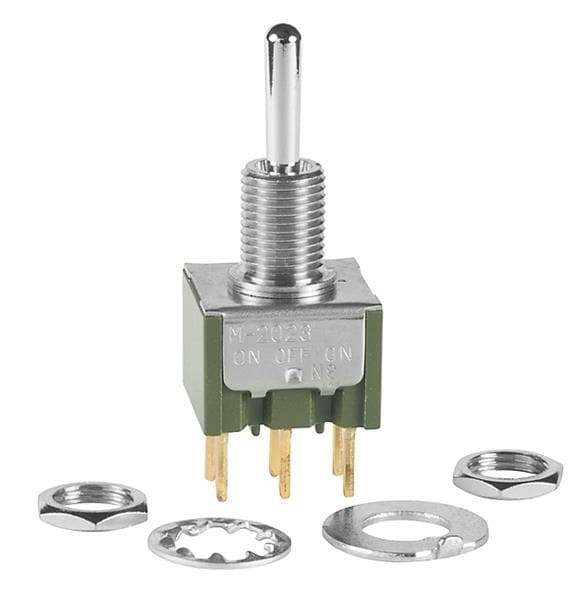

NKK Switches M2023SS1G03 Miniature toggles DPDT ON-OFF-ON

Life: 50000 Cycle

Color: Multi Color

Actuator: Bat

Illuminated: Non-Illuminated

Unit Weight: 8.392 g

Bushing Size: 1/4-40

Contact Form: DPDT

Power Rating: 400 mVA

REACH - SVHC: Details

Terminal Seal: Epoxy

Actuator Style: Bat

Current Rating: 400 mA

Mounting Angle: Vertical

Mounting Style: Panel Mount

Contact Plating: Gold

Switch Function: ON - OFF - ON

Contact Material: Gold

Housing Material: Brass

Termination Style: Solder Pin

Voltage Rating AC: 28 VAC

Voltage Rating DC: 28 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
