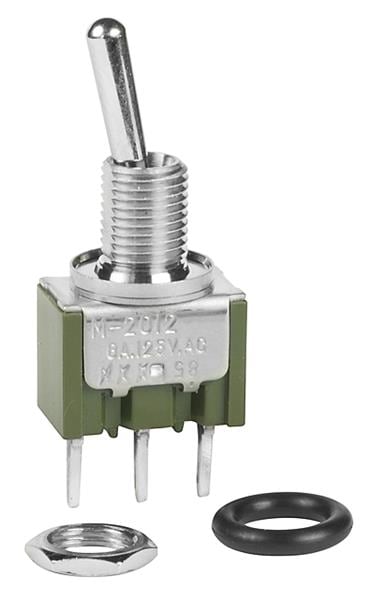

NKK Switches M2012SD3W03 Miniature toggles SPDT ON-NONE-ON

Life: 25000 Cycle

Color: Multi Color

Actuator: Bat

IP Rating: IP67

Illuminated: Non-Illuminated

Unit Weight: 5 g

Bushing Size: 1/4-40

Contact Form: SPDT

REACH - SVHC: Details

Terminal Seal: Epoxy

Actuator Style: Bat

Current Rating: 4 A, 6 A

Mounting Angle: Vertical

Mounting Style: Panel Mount

Contact Plating: Silver

Switch Function: ON - ON

Contact Material: Silver

Housing Material: Brass

Termination Style: Solder Pin

Voltage Rating AC: 125 VAC

Voltage Rating DC: 30 VDC

Flammability Rating: UL 94 V-0

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
