NI USB-6509 Digital I/O Device (1.5mA, 0V ~ 5V) | EMIN.CO.TH

Digital I/O
NI USB-6509 Digital I/O Device (1.5mA, 0V ~ 5V)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

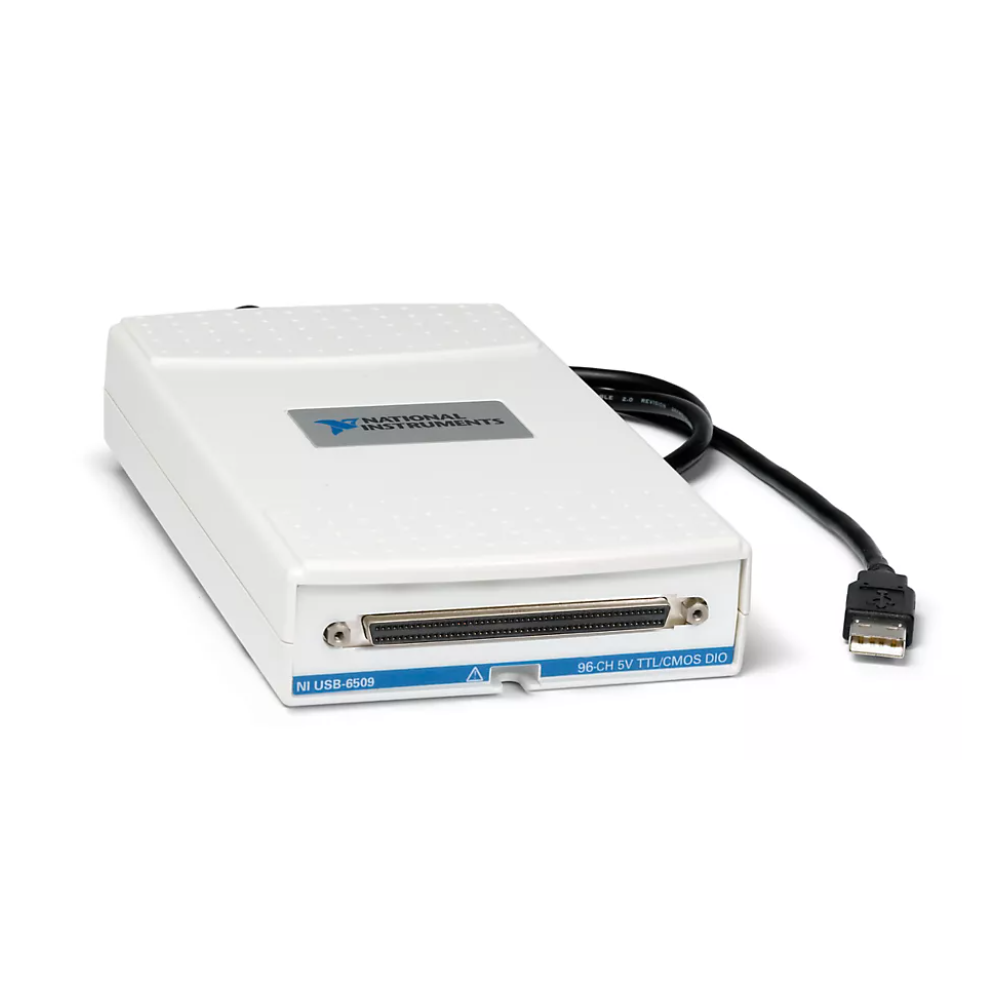

Product image

NI USB-6509 Digital I/O Device (1.5mA, 0V ~ 5V)

ManufacturerNI(View more products from this manufacturer)

ModelUSB-6509

P/N779975-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Bus Connector: USB 2.0

Number of Bidirectional Digital Channels: 96

Single-Ended Digital I/O Channel Current Drive: 1.5 mA

Number of Digital Input Only Channels: 0

Digital Input Voltage Range: 0 V to 5 V

Number of Digital Output Only Channels: 0

Output Voltage Range: 0 V to 5 V

Maximum Clock Rate: —

Provides digital input and output capabilities for computer-based systems.

The Digital I/O Device supports channel, current, and voltage options to help you automate applications. This module features programmable input filters to remove chatter, noise, glitches, and spikes on inputs, and these filters also provide debouncing for digital switches and relays. You can use the module to perform safe operation when connected to pumps, motors, and other industrial actuators or machinery using the included power-up states. The module also provides a fail-safe mechanism that monitors for computer or application crashes and place the system in a state to ensure safe recovery. Additionally, some models include high-voltage, high-current, and isolation options to ensure the product can work safely in many environments.The Digital I/O Device includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
