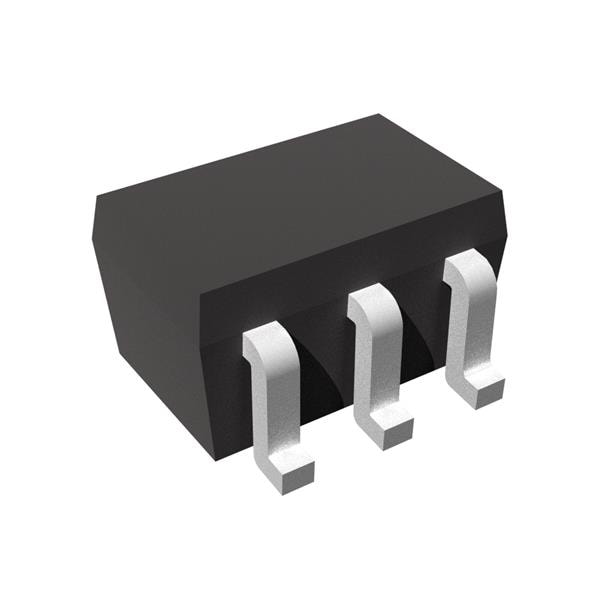

Nisshinbo R3117Q242C-TR-FE Voltage Supervisory Voltage Detector with SENSE pin

Accuracy: 1 %

Output Type: CMOS

Manual Reset: No Manual Reset

Mounting Style: SMD/SMT

Watchdog Timers: No Watchdog

Threshold Voltage: 2.4 V

Chip Enable Signals: No Chip Enable

Power Fail Detection: Yes

Supply Voltage - Max: 6 V

Supply Voltage - Min: 1 V

Overvoltage Threshold: 2.4624 V

Pd - Power Dissipation: 380 mW

Undervoltage Threshold: 2.358 V

Battery Backup Switching: Backup

Operating Supply Current: 310 nA

Number of Inputs Monitored: 1 Input

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
