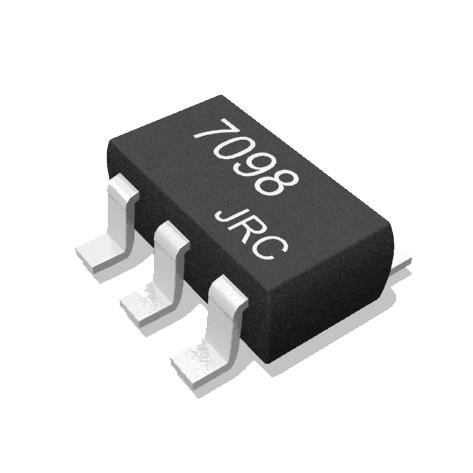

Nisshinbo NJU7098AF1-TE1 Operational Amplifiers 11V 15uV 3V to 10V 20mV 30mA 140dB

Shutdown: Shutdown

Output Type: Rail-to-Rail

Mounting Style: SMD/SMT

SR - Slew Rate: 12 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 10 V

Supply Voltage - Min: 3 V

Ib - Input Bias Current: 400 pA

Operating Supply Current: 600 uA

Ios - Input Offset Current: 500 pA

Output Current per Channel: 40 mA

Vos - Input Offset Voltage: 3 uV

GBP - Gain Bandwidth Product: 3 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 120 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 100 dB

PSRR - Power Supply Rejection Ratio: 130 dB
