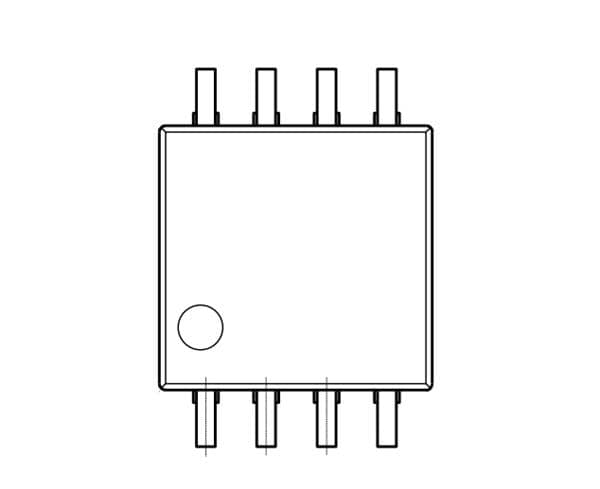

Nisshinbo NJMOP277GR-TE1 Precision Operational Amplifiers 40V Sgl Op Amp 50uV 40V 10mA 500mW 3nA

Shutdown: No Shutdown

Amplifier Type: Low Noise Precision Operational Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 700 mV/us

THD plus Noise: 0.002 %

Number of Channels: 1 Channel

Supply Voltage - Max: 36 V, 18 V

Supply Voltage - Min: 4.5 V, 2.25 V

Ib - Input Bias Current: 500 pA

Operating Supply Current: 760 uA

Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 2 V

Ios - Input Offset Current: 500 pA

Vos - Input Offset Voltage: 20 uV

Maximum Dual Supply Voltage: 18 V

Minimum Dual Supply Voltage: 2.25 V

GBP - Gain Bandwidth Product: 1 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.2 pA/sqrt Hz

en - Input Voltage Noise Density: 8 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 115 dB
