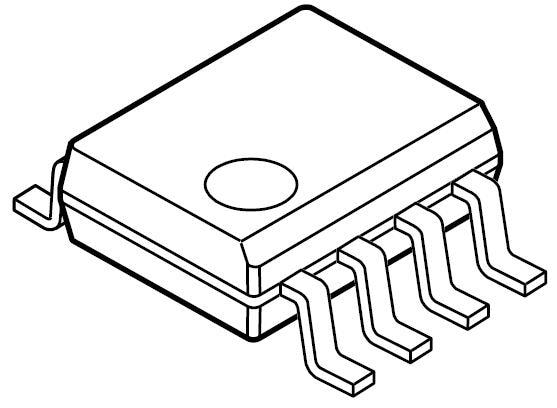

Nisshinbo NJM072CAG-TE2 Operational Amplifiers Dual J-FET Op Amp 4 to 18V 6mV 3MHz

Gain V/V: 200 V/mV

Shutdown: No Shutdown

Topology: Dual

Technology: JFET

Unit Weight: 88 mg

Amplifier Type: Low Noise

Mounting Style: SMD/SMT

SR - Slew Rate: 13 V/us

THD plus Noise: 0.003 %

Number of Channels: 2 Channel

Supply Voltage - Max: 18 V

Supply Voltage - Min: 4 V

Ib - Input Bias Current: 30 pA

Operating Supply Current: 1.4 mA

Vcm - Common Mode Voltage: - 12 V to 15 V

Ios - Input Offset Current: 5 pA

Vos - Input Offset Voltage: 3 mV

GBP - Gain Bandwidth Product: 3 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

In - Input Noise Current Density: 0.01 pA/sqrt Hz

en - Input Voltage Noise Density: 18 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 100 dB
