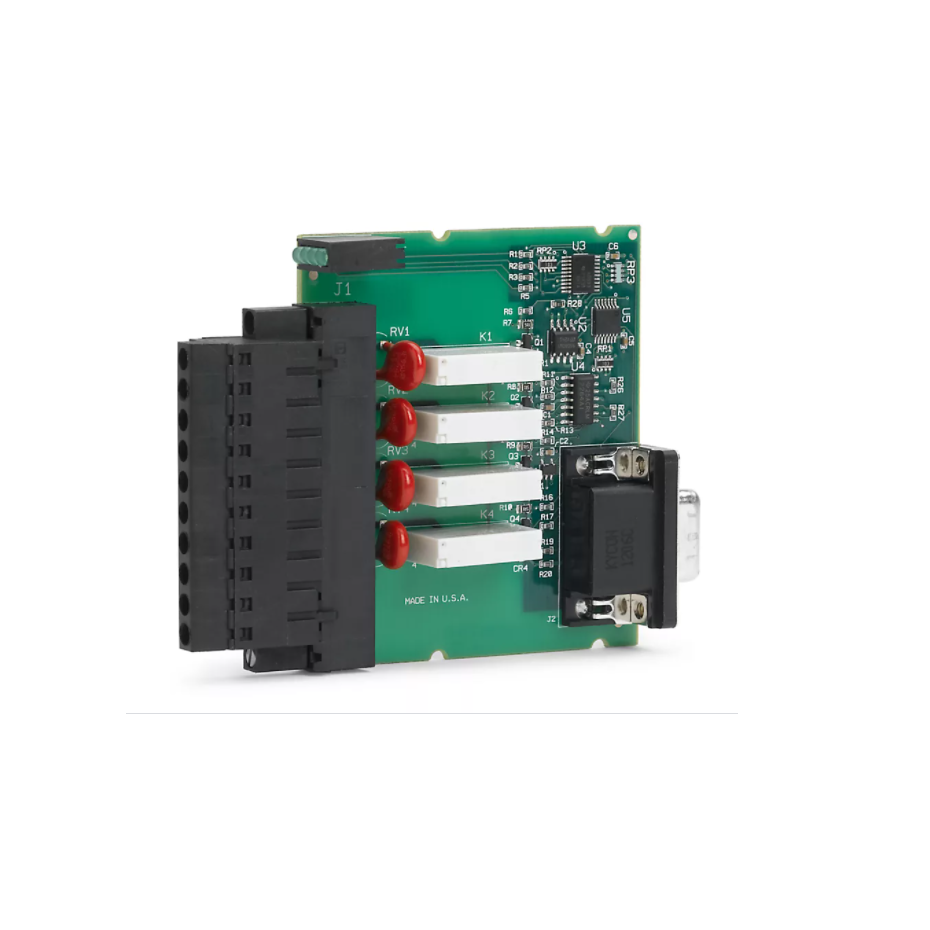

NI sbRIO-9482 C Series Relay Output Module (Electromechanical, 4-Ch, 250VAC, 60VDC)

Relay Type: Electromechanical

Number of Digital Output Only Channels: 4

Maximum Switching Voltage AC: 250 V

Maximum Switching Voltage DC: 60 V

Front Connection Type: Screw Terminal

Conformal Coated: No

Enclosed: No

Supported Hardware Platform: CompactRIO

Provides output signals from electromechanical and solid state/FET relays for CompactDAQ or CompactRIO systems.

The C Series Relay Output Module enables you to switch up to eight signals at 60 V maximum DC switching voltage and up to 250 V of maximum AC switching current. For quick reference, every channel features an LED to indicate the state of that channel. The C Series Relay Output Module allows for direct connection to a wide array of industrial devices such as motors, actuators, and DC devices.The C Series Relay Output Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
