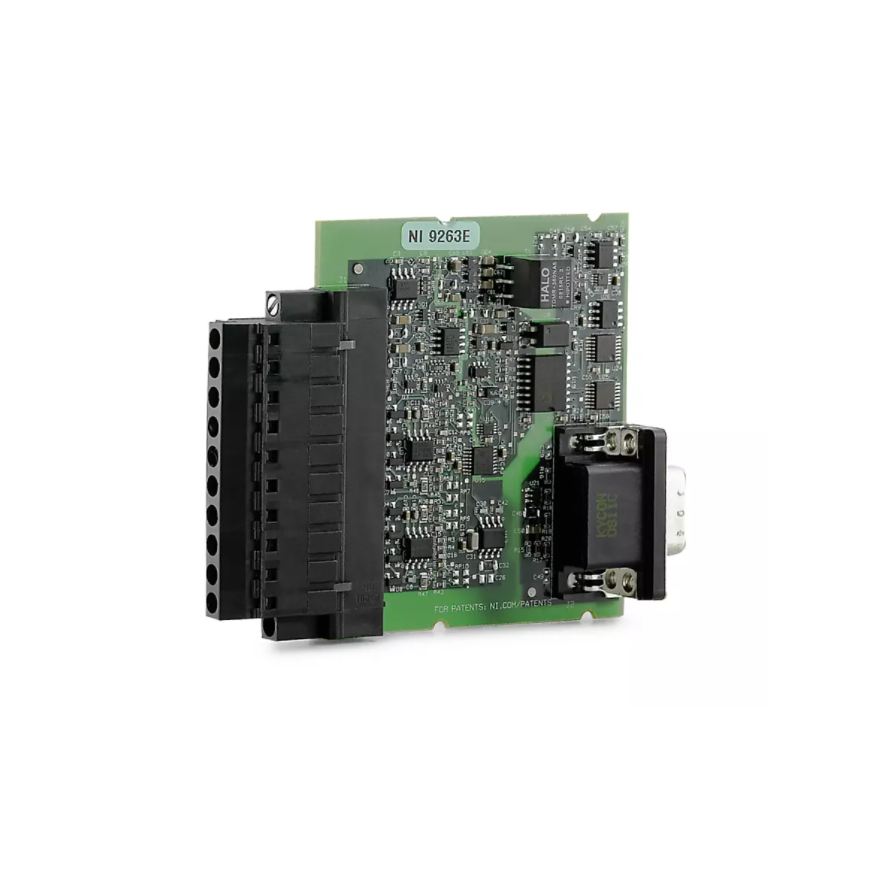

NI sbRIO-9263 C Series Voltage Output Module (-10V~10V, 100 kS/s/ch, 16 bits,Screw Terminal)

Number of Analog Output Channels: 4

Analog Output Voltage Range: -10 V to 10 V -40 V to 40 V

Maximum Update Rate: 100 kS/s/ch

Maximum Current Drive: 1 mA

Analog Output Resolution: 16 bits

Front Connection Type: Screw Terminal

Analog Output Isolation: 250 Vrms Ch-Earth Ground Isolation

Conformal Coated: No

Enclosed: No

Supported Hardware Platform: CompactRIO

Generates voltage signals for CompactDAQ or CompactRIO systems.

The C Series Voltage Output Module helps you update analog output models that feature overvoltage protection, short-circuit protection, low crosstalk, fast slew rate, high relative accuracy, and NIST-traceable calibration. This module includes up to 16 channels. Some models include a channel-to-earth ground double isolation barrier for safety and noise immunity as well as improved signal quality, and some higher density models conserve chassis space, which leaves room for other measurement types.The C Series Voltage Output Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
