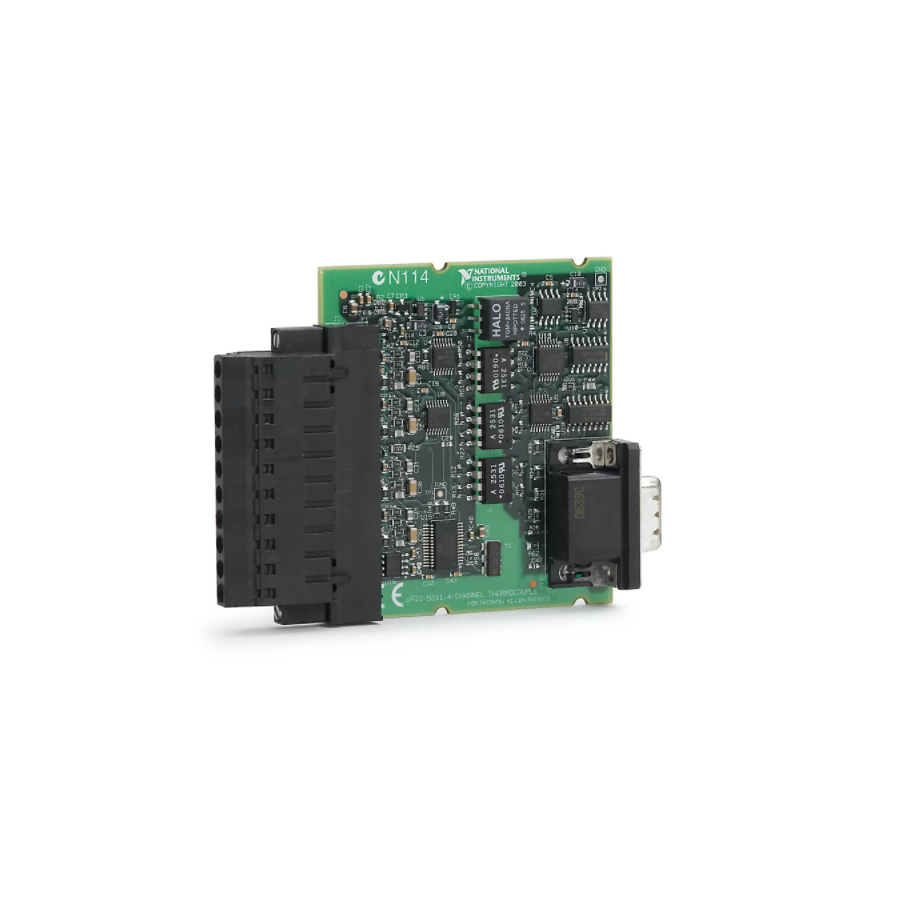

NI sbRIO-9211 C Series Temperature Input Module (4-Channel, 14 S/s, Screw Terminal)

Maximum Number of Differential Analog Input Channels: 4

Maximum Sample Rate: 14 S/s

Analog Input Isolation: 250 Vrms Ch-Earth Ground Isolation

Example of Measurement Accuracy: 0.92 °C

Supported Sensors: All Standard Thermocouples

Front Connection Type: Screw Terminal

Conformal Coated: No

Enclosed: No

Supported Hardware Platform: CompactRIO

Takes measurements from thermocouples and resistance temperature detectors (RTDs) for CompactDAQ or CompactRIO systems.

The C Series Temperature Input Module features up to 16 channels of temperature input from either thermocouples or RTDS. This module can include anti-aliasing filters, open-thermocouple detection, and cold-junction compensation. Additionally, the module also feature isolation for safety, noise immunity, and high common-mode voltage range.The C Series Temperature Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
