The following specifications are typical for the range -25 °C to 60 °C unless otherwise noted.
Input Characteristics
Number of inputs
Thermocouple/Linear voltage: 4
Voltage (-5 V to +5 V): 1
Input types
TC: U, T, L, J, E, K, N, S, R, B, C, W, HK
RTD: Pt 100 (2 external cold junctions, can also be used as input)
Resolution A/D: 24-bit
Measuring principle: Sigma/Delta process
Measured value representation: 16 bits (15 bits + sign bit)
Input filter time: 40 ms, 60 ms, 100 ms, 120 ms (adjustable)
Accuracy
Relative: 0.01%, typical
Absolute: ±0.19 K, typical
Short-circuit protection, overload protection of the inputs: Yes
Transient protection of inputs: Yes
Provides thermocouple input channels for remote I/O systems. Remote I/O modules must be used with a supported NI real-time controller.

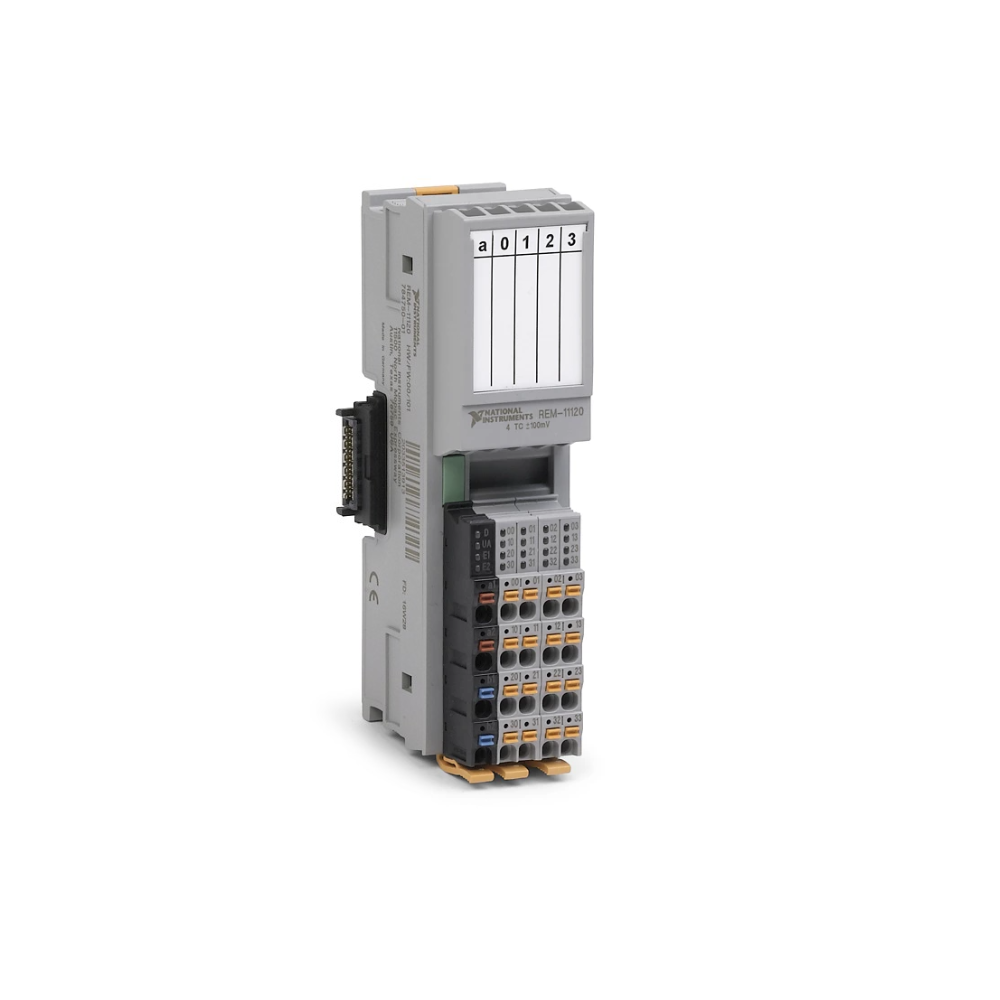

The Temperature Input Module for Remote I/O features a features a thermocouple input range of ±100 mV and a voltage input range of ±5 V. It also has an adjustable filter time for improved measurement quality and optional external CJC or PT100 RTD measurements.A remote I/O system consists of an EtherCAT bus coupler and individual modules mounted on a DIN rail. You control the Temperature Input Module for Remote I/O from a real‐time controller, such as a CompactRIO Controller or an Industrial Controller. You can use remote I/O hardware to add low‐cost I/O for simple tasks while your controller handles advanced tasks such as image processing, motion control, and high‐speed or specialty measurements.
