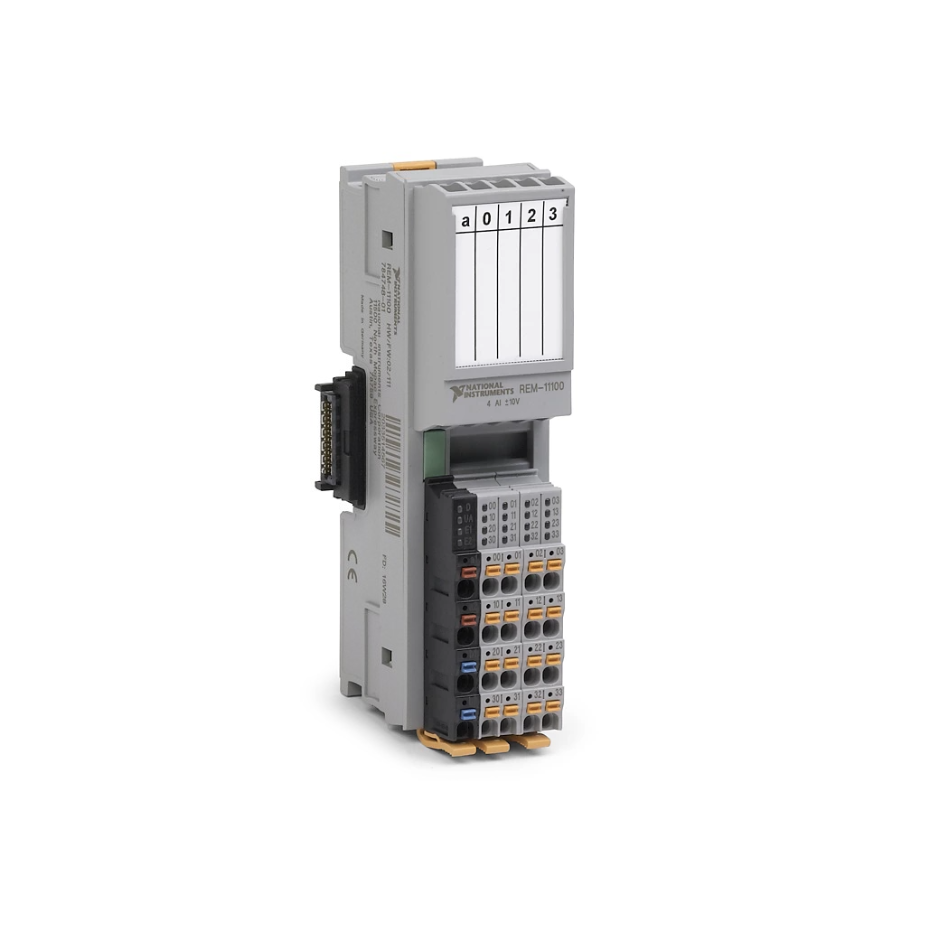

NI REM-11100 Voltage Input Module for Remote I/O (4-Channel, ±10 V, 16 bits)

Number of inputs: 4

Input signal: 0 V to 5 V, -5 V to 5 V, 0 V to 10 V, -10 V to 10 V

Resolution A/D: 16-bit

Conversion time A/D: 31.25 μs

Limit frequency (3 dB): 30 Hz , 12 kHz

Measured value representation: 16 bits (15 bits + sign bit)

Process data update: 160 μs

Input filter: 30 Hz, 12 kHz and mean-value generation

Precision: 0.1%

Transient protection of inputs: Suppressor diode

Input resistance: 268 kΩ, typical

Provides voltage input channels for remote I/O systems. Remote I/O modules must be used with a supported NI real-time controller.

The Voltage Input Module for Remote I/O features 2-, 3-, and 4-wire spring terminal connection methods, a built-in power supply for sensors, four selectable input ranges, and simultaneous sampling. A remote I/O system consists of an EtherCAT bus coupler and individual modules mounted on a DIN rail. You control the Voltage Input Module for Remote I/O from a real-time controller, such as a CompactRIO Controller or an Industrial Controller. You can use remote I/O hardware to add low-cost I/O for simple tasks while your controller handles advanced tasks such as image processing, motion control, and high-speed or specialty measurements.
