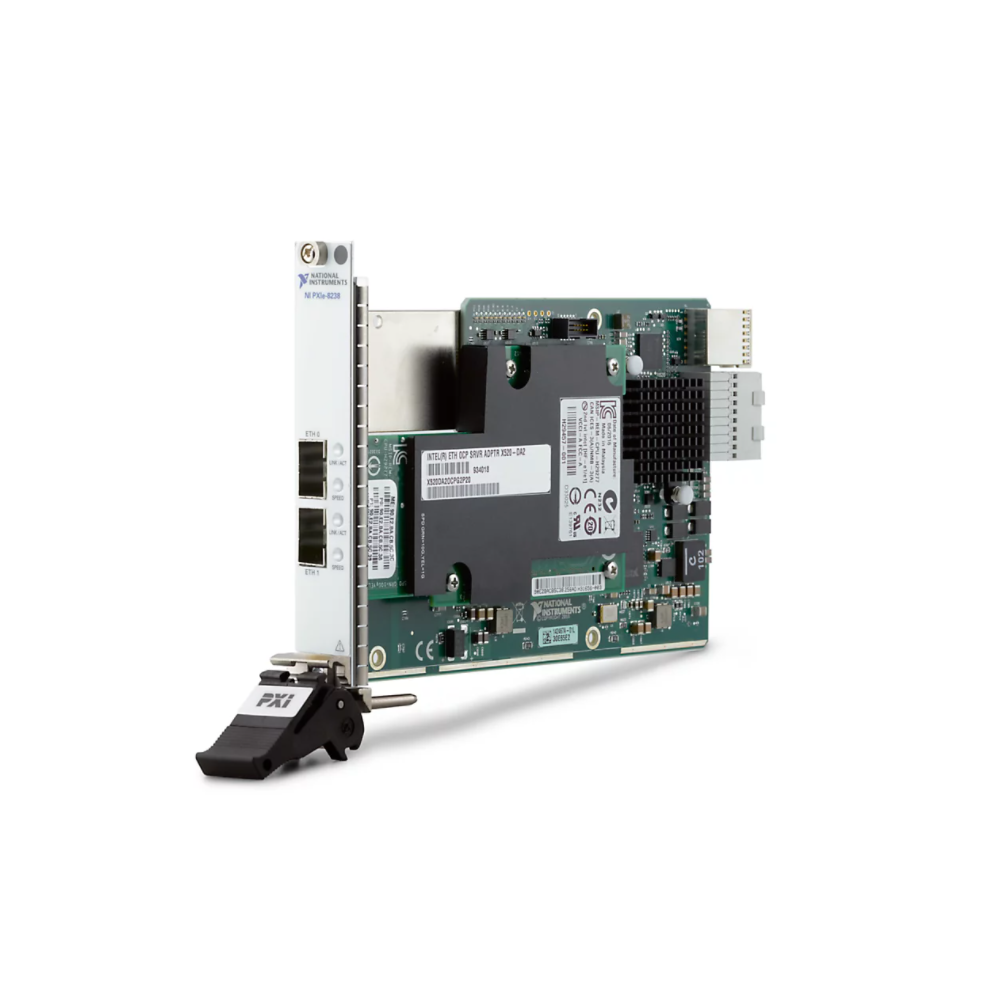

NI PXIe-8238 PXI Ethernet Interface Module (2-Port, 10 Gbits/s)

Ethernet Bandwidth: 10 Gbits/s

Number of Ethernet Ports: 2

Physical

Board dimensions: 1-slot 3U PXI Express peripheral module

Compatibility: Fully compatible with PXI Express Specification 1.0

Weight: 249 g (0.55 lb) typical

Operating Environment

Ambient temperature range: 0 °C to 55 °C (Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2.)

Relative humidity range: 10% to 90%, noncondensing (Tested in accordance with IEC-60068-2-56.)

Maximum altitude: 2,000 m (800 mbar)

Pollution Degree: 2

Indoor use only.

Storage Environment

Ambient temperature range: -40 °C to 71 °C (Tested in accordance with IEC-60068-2-1 and IEC-60068-2-2.)

Relative humidity range: 5% to 95%, noncondensing (Tested in accordance with IEC-60068-2-56.)

Shock and Vibration

Operating shock: 30 g peak, half-sine, 11 ms pulse (Tested in accordance with IEC-60068-2-27. Meets MILPRF-28800F Class 2 limits.)

Random vibration

Operating: 5 Hz to 500 Hz, 0.3 g(rms)

Nonoperating: 5 Hz to 500 Hz, 2.4 g(rms) (Tested in accordance with IEC-60068-2-64. Nonoperating test profile exceeds the requirements of MILPRF-28800F, Class 3.)

Enables Ethernet-based communication between PXI hardware and external instruments and devices and supports GigE Vision cameras without power over Ethernet (PoE).

The PXI Ethernet Interface Module equips PXI systems with high-bandwidth Ethernet-based connectivity with up to 40 Gb/s data rates per port. Featuring compatibility with industry-standard network and automatic cable polarity detection, this module is ideal for high-performance data transfer and vision applications on the PXI platform. These modules have independent bandwidth to support up to four GigE Vision cameras without PoE.
