NI PXIe-6535 PXI Digital I/O Module (-1 V ~ 6 V) | EMIN.CO.TH

Digital I/O
NI PXIe-6535 PXI Digital I/O Module (-1 V ~ 6 V)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

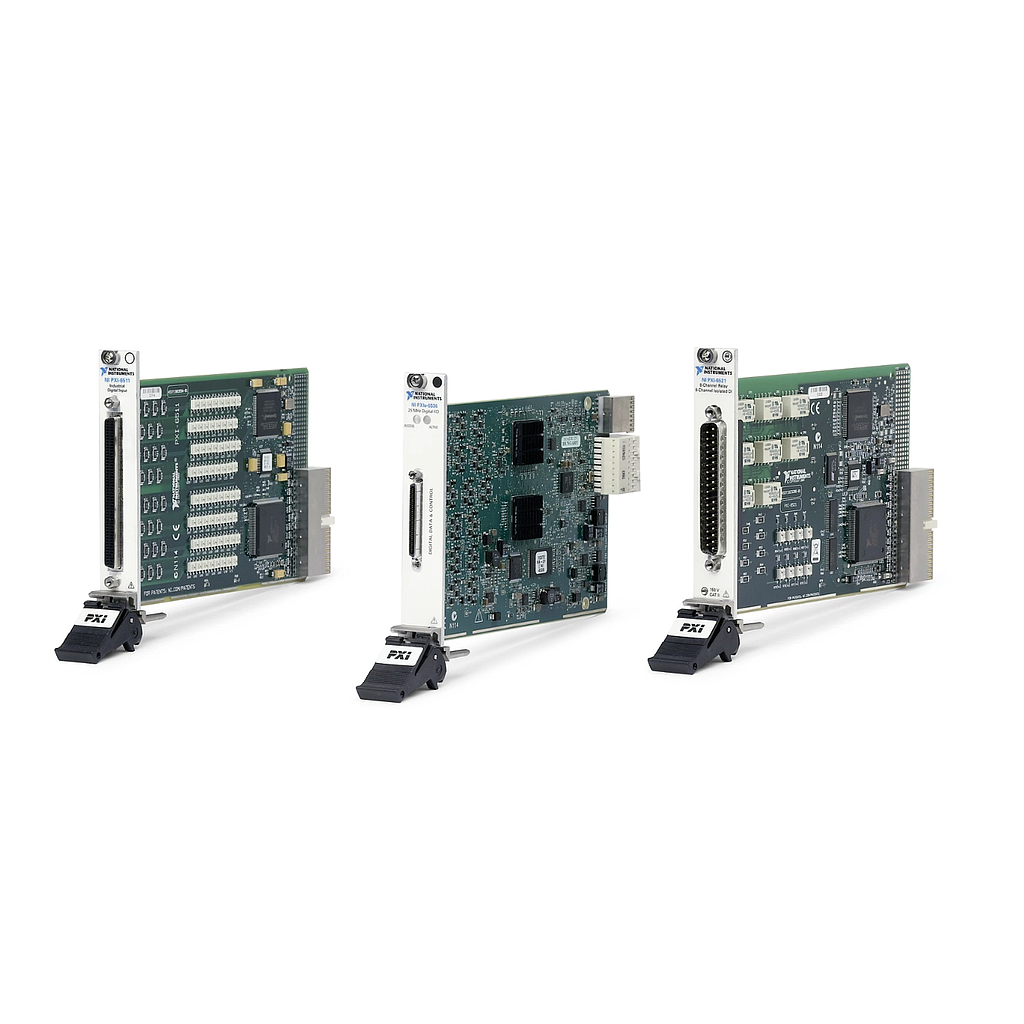

Product image

NI PXIe-6535 PXI Digital I/O Module (-1 V ~ 6 V)

ManufacturerNI(View more products from this manufacturer)

ModelPXIe-6535

P/N780695-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Digital I/O Logic Levels: 2.5 V 3.3 V

Bus Connector: PXIe

Single-Ended Digital I/O Channel Current Drive: —

Number of Bidirectional Digital Channels: 32

Signaling Type: Single-Ended

Number of Digital Input Only Channels: —

Digital Input Voltage Range: -1 V to 6 V

Number of Digital Output Only Channels: —

Output Voltage Range: 0 V to 5 V

Maximum Clock Rate: 10 MHz

Provides digital input and output capabilities for PXI systems.

The PXI Digital I/O Module supports up to 96 channels of digital I/O, with compatibility for a variety of voltage and isolation levels. Some models include programmable input filters to eliminate glitches/spikes and provide debouncing for digital switches/relays through a software-selectable digital filter. You can use the module in application such as manufacturing tests, industrial control, advanced aerospace, laboratory research, and more. The PXI Digital I/O Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.

Datasheet
