Bus Connector: PXIe
Number of Banks: 1
Number of Channels: 16
Switch Bandwidth: 500 MHz
Characteristic Impedance: 50 Ohm
Termination: No
Max Insertion Loss: -1.9 dB
Relay Type: Electromechanical
Maximum Switching Voltage AC: 150 V
Maximum Carry Current AC: 1 A
Connect multiple inputs to a single output, or multiple outputs to a single input, to simplify wiring in automated test systems.

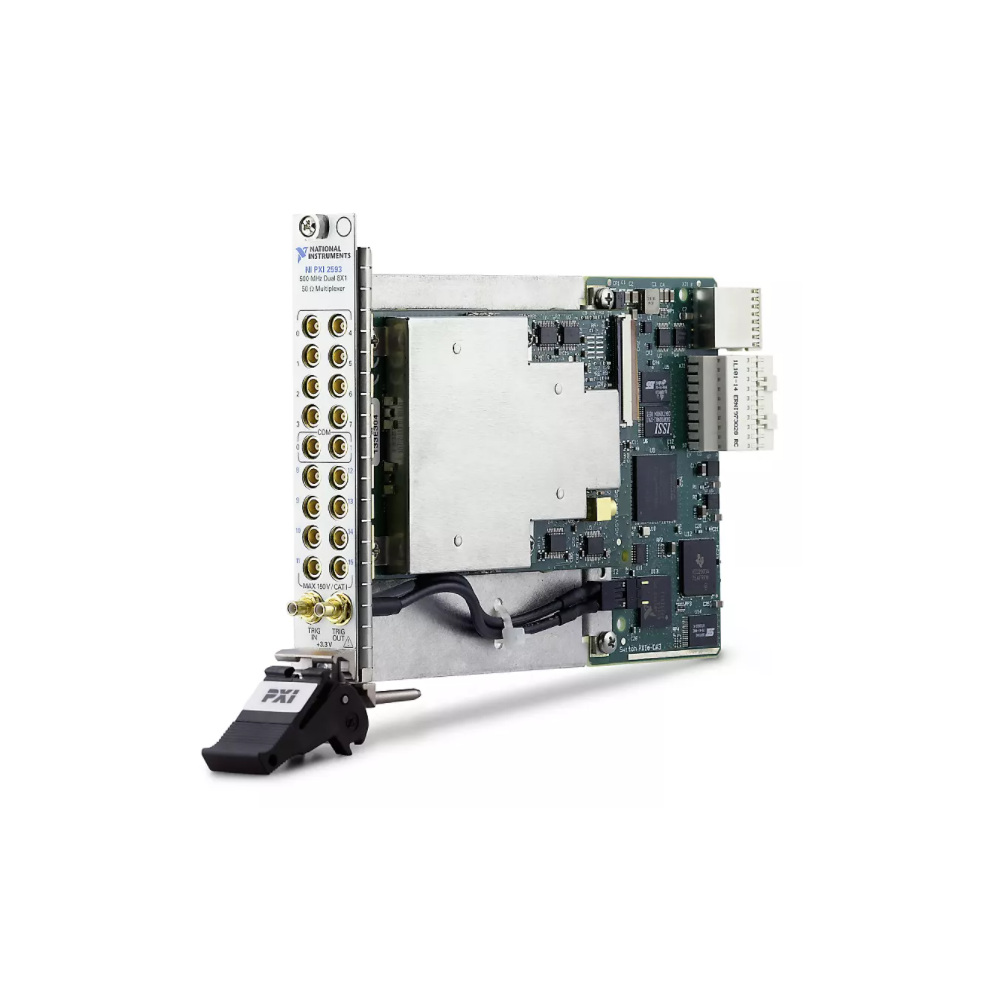

PXI RF Multiplexer Switch Modules are ideal for high-channel-count applications that need to connect measurement or signal generation instruments to various test points on devices or units under test (DUTs or UUTs). PXI RF Multiplexer Switch Modules use a variety of relay types, including electromechanical armature relays, reed relays, field-effect transistor (FET) relays, and solid-state relays, each with their own benefits, allowing you to choose a multiplexer that fits your requirements. To program the switches, you can use the IVI-compliant NI-SWITCH driver software, complete with help documentation, example programs, and a soft front panel application for interactive control of switches. For intelligent management of complex switch systems, NI Switch Executive provides additional software tools to help you design, build, and deploy your switching system.
