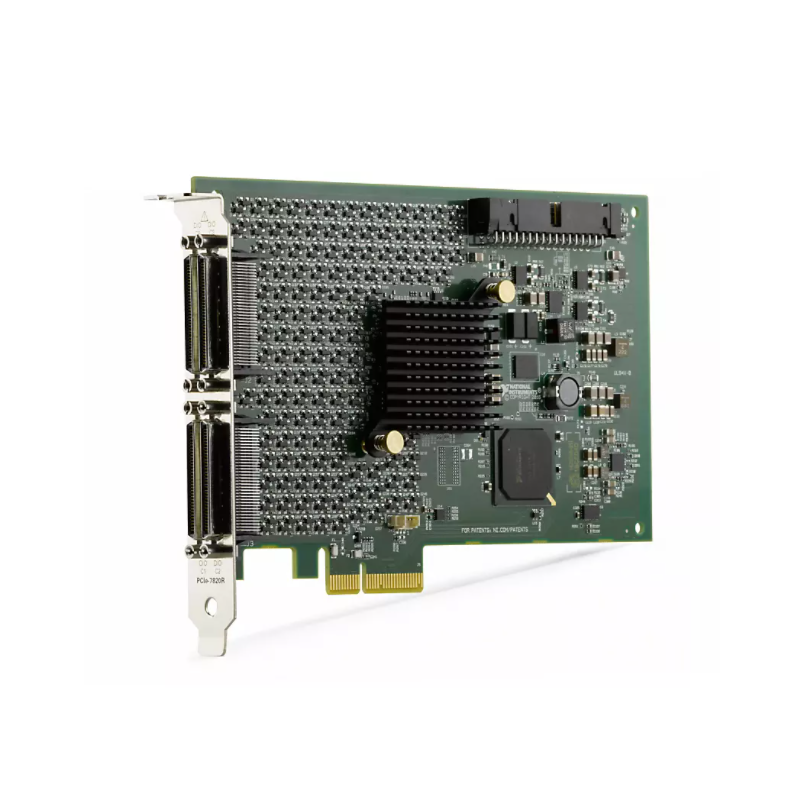

NI PCIe-7822 Digital Reconfigurable I/O Device (Kintex-7 325T, 128-Ch, DRAM-512MB)

Bus Connector: PCI Express

FPGA: Kintex-7 325T

Number of Bidirectional Digital Channels: 128

Number of External Clock Inputs: 4

Maximum Clock Rate: 80 MHz

Digital I/O Logic Levels: 1.2 V 1.5 V 1.8 V 2.5 V 3.3 V

Dynamic RAM (DRAM): 512 MB

Configures digital lines as inputs, outputs, counters/timers, or custom communication protocols using FPGA-based logic.

The Digital Reconfigurable I/O (RIO) Device features user-programmable FPGA for onboard processing and flexible I/O operation. You have complete control over the synchronization and timing of all signals and operations along with custom onboard decision-making that executes with hardware-timed speed and reliability. You can configure user-defined hardware for a wide variety of applications, such as custom digital DAQ, high-speed waveform generation, sensor simulation, hardware-in-the-loop (HIL) test, custom digital communications protocols, bit error rate testing, and other applications that require precise timing and control.
