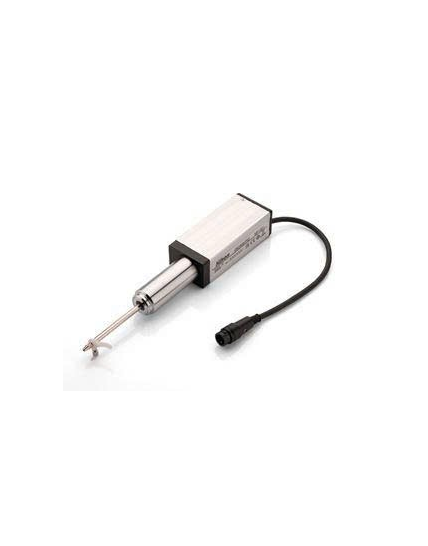

NIKON MF-501 Digimicro Heads

Measurement range: 0-50 mm

Minimum displayed value:

With MFC-200 counter connected: 0.1 µm (switchable to 0.5 µm or 1 µm)

With TC-200 counter connected: 0.01 µm (can be switched to 0.05 µm, 0.1 µm, 0.5 µm, 1 µm, or 5 µm)

Accuracy (20 °C): 1 µm

Response speed: 500 mm/sec. or less

Measuring force: Downward 1.13 το 1.62N (variable to about 0.29N) Lateral 0.64 το 1.23Ν

Operating temperature range: 0°C to +40°C

Weight: Approx. 310 g

Compatible counters: MFC-200, TC-200

Compatible stands: MS-12C, MS-23S, MS-32G, MS-41G
