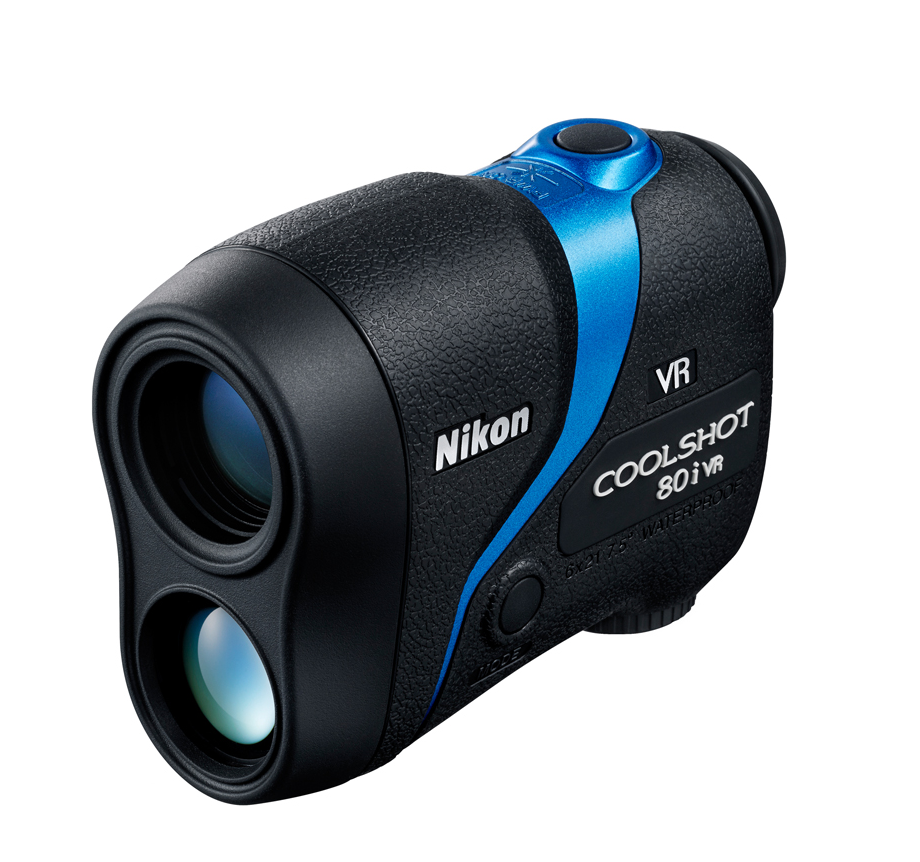

NIKON COOLSHOT 80i VR Laser Rangefinder (7.5-915m/8-1,000 yd.)

Measurement range (actual distance): 7.5-915m/8-1,000 yd.

Distance display (increment):

Actual distance (upper): Every 1m/yd.

Actual distance (lower): Every 0.5m/yd.

Horizontal distance/Slope adjusted distance (lower): Every 0.2m/yd.

Height (upper):

Every 0.2m/yd. (shorter than 100m/yd.)

Every 1m/yd. (100m/yd. and over)

Accuracy (actual distance):

±0.75m/yd. (shorter than 700m/yd.)

±1.25m/yd. (700m/yd. and over）

Magnification (x): 6

Effective objective diameter (mm): 21

Actual field of view (°): 7.5

Exit pupil (mm): 3.5

Eye relief (mm): 18.0

Dimensions (L x H x W) (mm/inch): 99 x 75 x 48/3.9 x 3.0 x 1.9

Weight (excluding battery) (g/oz.): 200/7.1

Power source: CR2 lithium battery x 1 (DC 3V)

Auto power shut-off (after approx. 8 sec. unoperated)

Waterproof structure: Waterproof (up to 1m/3.3 ft. for 10 minutes), fogproof

Laser classificationIEC60825-1: Class 1M/Laser Product

FDA/21 CFR Part 1040.10: Class I Laser Product

Electromagnetic compatibility: FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020

Environment: RoHS, WEEE
