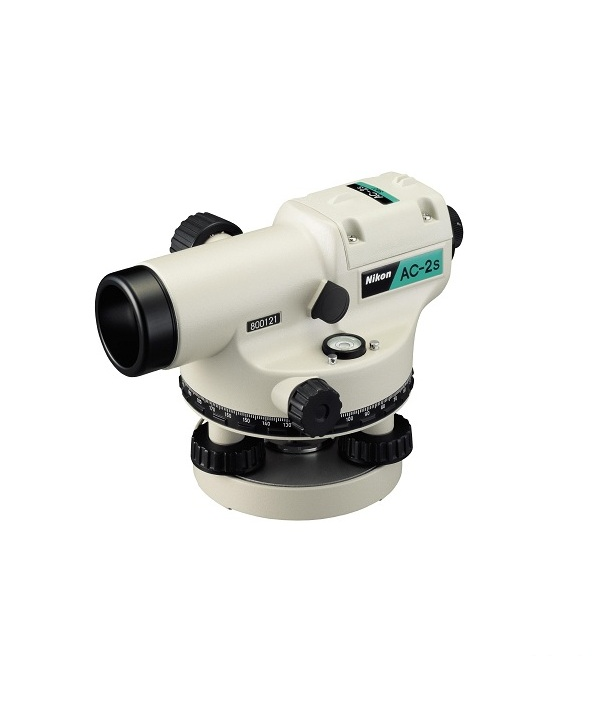

NIKON AC-2S Laser level

Lens

Lens length: 190mm

Image: Upright

Magnification: 24X

Objective lens diameter: 30mm

Field of view: 1°30’

Minimum focusing distance: 0.75m

Multiplication constant: 100

Additive constant: 0

Circular Bubble Level

Sensitivity of circular bubble: 10'/2mm

Accuracy per 1km double-run leveling: ±2.0mm

Automatic Compensator

Type of compensator: Magnetic damping

Compensation range: 16'

Setting accuracy: 0.5''

Horizontal Circle

Horizontal circle diameter: 110mm

Smallest division: 1°

Other Specifications

Instrument dimensions (length x height x width): 190x128x123mm

Plastic case dimensions: 292x170x163mm

Instrument weight: 1.25kg
