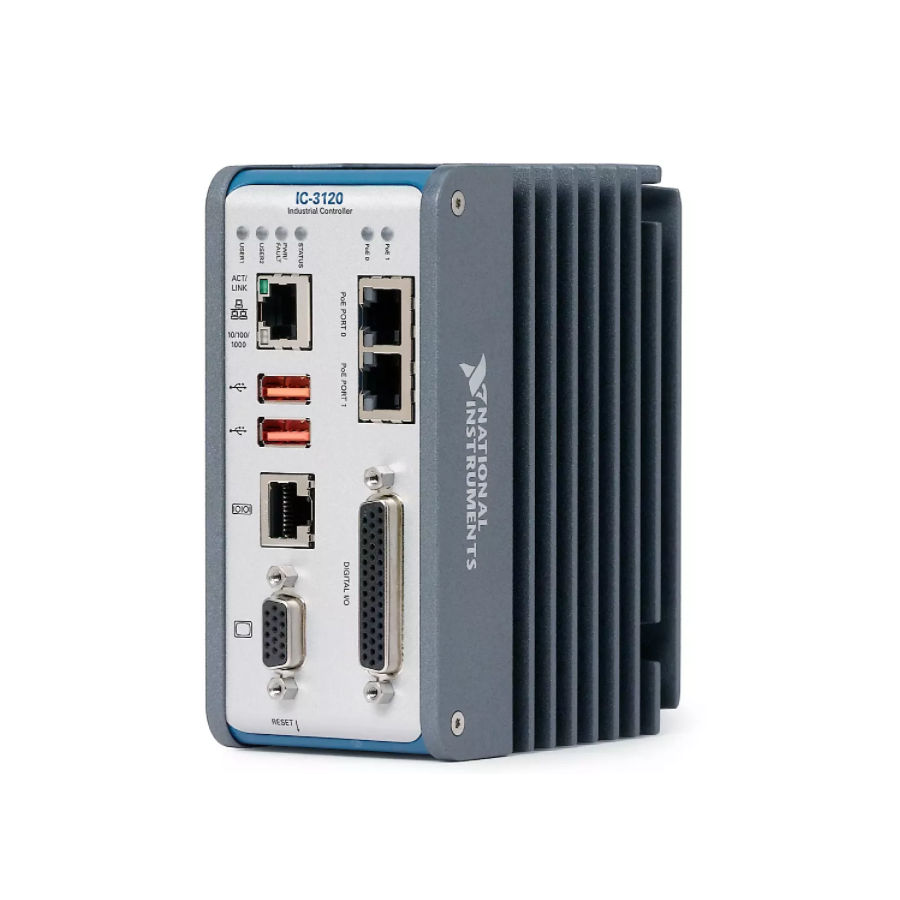

NI IC-3120 Industrial Controller (1.91 GHz Quad Core Intel Atom, Spartan-6 LX25, 2GB)

Number of USB 2.0 Ports: 2

Number of USB 3.0 Ports: 0

Processor Core: 1.91 GHz Quad Core Intel Atom

Controller OS: LabVIEW Real-Time (NI Linux Real-Time)

FPGA: Spartan-6 LX25

RAM Size: 4 GB

Hard Drive Memory Size: 2 GB

Number of Ethernet Ports on Controller: 3

IP Rating: IP 40

Display Port: VGA

Synchronization Enabled: No

To create a complete vision system, explore other vision system components, such as lighting, lenses, and cables.

Offers high levels of processing power and connectivity for automated image processing, data acquisition, and control applications in extreme environments.

Industrial Controllers are high-performance, fanless controllers that provide connectivity for communication and synchronization to EtherCAT and Ethernet CompactRIO chassis, EtherCAT motion drives, GigE Vision and USB3 Vision cameras, and other automation equipment. Controllers also have onboard isolated, transistor‐transistor logic (TTL), and differential digital I/O. You can use LabVIEW system design software to create, debug, and deploy logic to both the onboard FPGA and the processor. LabVIEW contains over 950 signal processing, analysis, control, and mathematics functions to accelerate development.

Datasheet
