Specifications are typical and valid at -40 °C to 85 °C unless otherwise noted.
Input Characteristics
Number of channels: 8 analog input channels
Isolation: Galvanic isolation between channels and to chassis
Input voltage range (AI+ to AI-): ±10 V, ±1 V
ADC resolution: 24 bits
Type of ADC: Delta-Sigma (with analog prefiltering)
Sample mode: Simultaneous
Input coupling: Software-selectable AC/DC
TEDS support: IEEE 1451.4 TEDS Class I
TEDS capacitive drive: 5,000 pF
Timebases (fM)
Frequency: 13.1072 MHz, 12.8 MHz, 12.288 MHz, 10.24 MHz
Accuracy: ±30 ppm maximum
Sampled data rate range (fs)
Minimum: 500 Sample/s
Maximum: 102.4 kSample/s
Sampled data rates (fs): Refer to the following table for sample data rates supported for each timebase
Provides dynamic signal acquisition in rugged environments. FieldDAQ™ devices are dust- and water-resistant and offer TSN technology for simplified distribution.

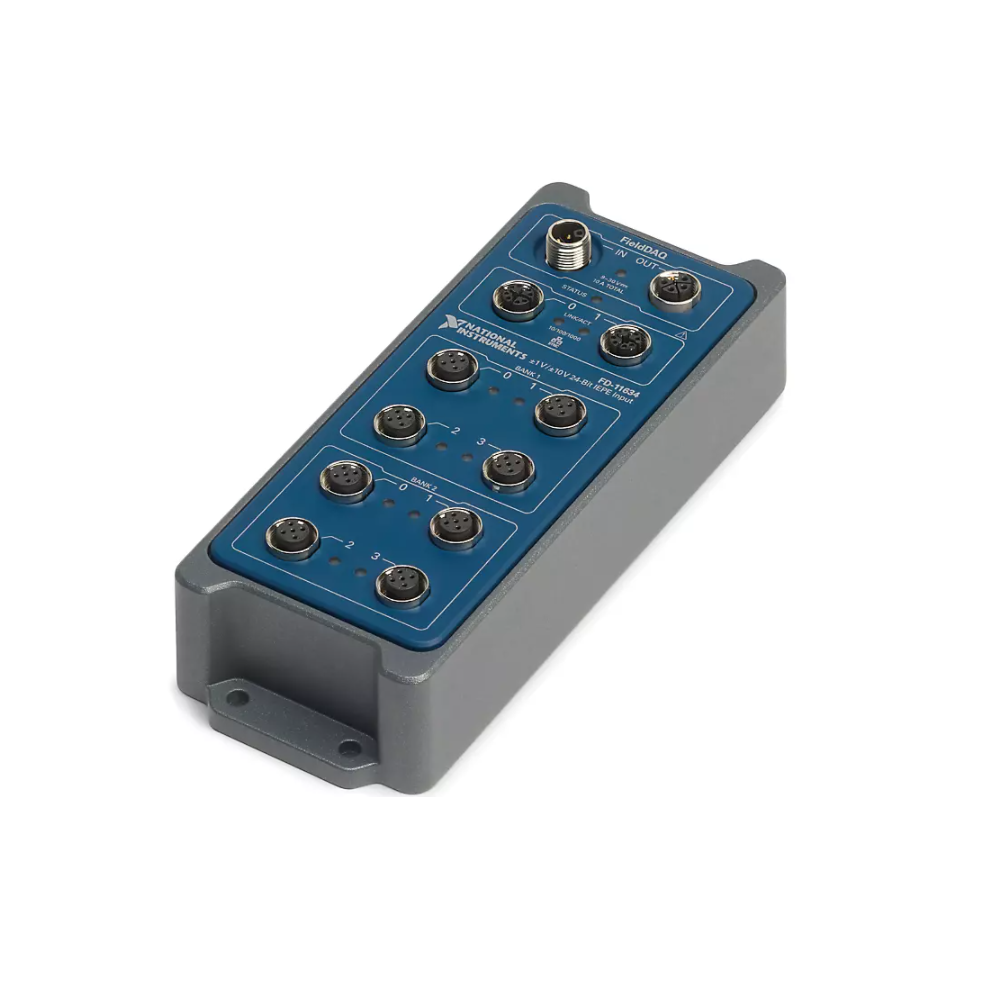

The Sound and Vibration Input Device for FieldDAQ incorporates software-selectable AC/DC coupling, integrated electronic piezoelectric (IEPE) open/short detection, IEPE signal conditioning, and TEDS support. The input channels simultaneously measure signals, and each channel has built-in anti-aliasing filters that automatically adjust to your sample rate. The device is IP65/IP67 dust- and water-resistant, can operate in -40 °C to 85 °C environments, and can sustain 100 g shock and 10 g RMS vibration. Additionally, the device can be used for test cell and outdoor environments, and can be used stand-alone or as an extension of a CompactDAQ, CompactRIO, or PXI system. The Sound and Vibration Device includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
