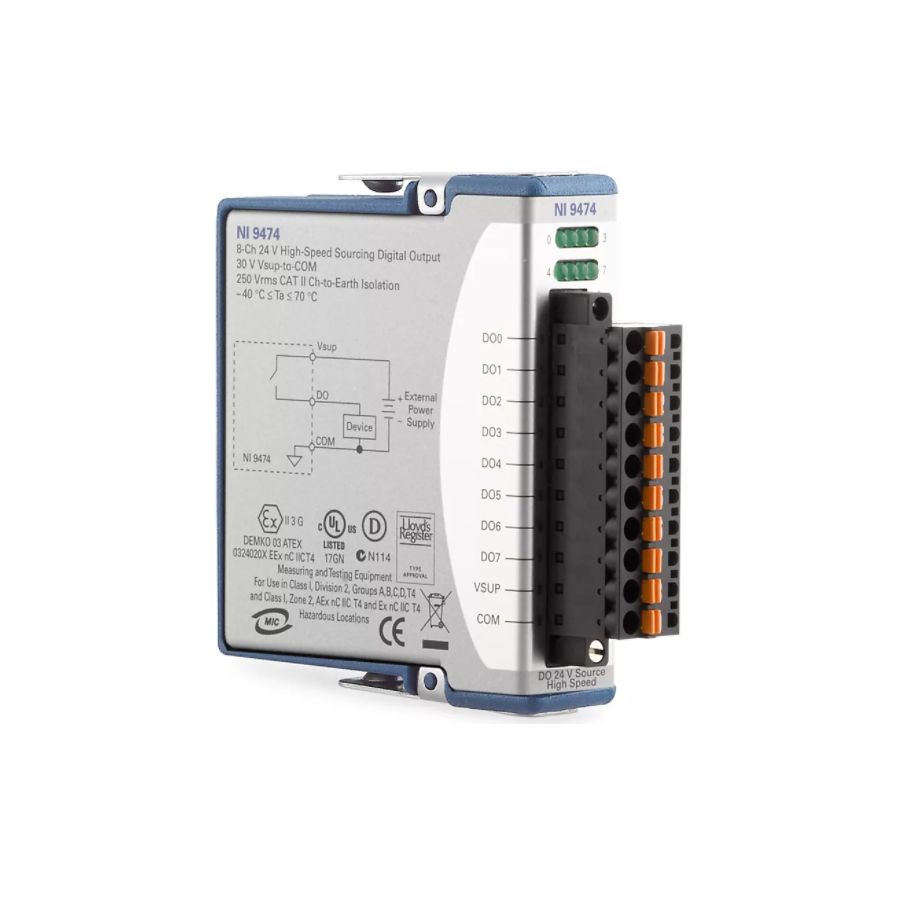

NI NI-9474 C Series Digital Module (Spring Terminal, 8ch, 12 V 24 V, 1 μs)

Number of Digital Input Only Channels: 0

Number of Digital Output Only Channels: 8

Number of Bidirectional Digital Channels: 0

Digital I/O Logic Levels: 12 V 24 V

Maximum Update Rate: 1 µs

Current Flow Direction: Sourcing Output

Digital I/O Isolation: 250 Vrms Ch-Earth Ground Isolation

Front Connection Type: Spring Terminal

Conformal Coated: No

Enclosed: Yes

Supported Hardware Platform: CompactDAQ CompactRIO

Kit Contents

• NI 9474

• NI 9474 Getting Started Guide

Required Accessories

• NI 9927 Backshell Connector Kit (screw terminal)

• NI 9981 Backshell Connector Kit (spring terminal)

Provides digital input and output capabilities for CompactDAQ or CompactRIO systems.

The C Series Digital Module interacts with a range of industrial switches, transducers, and devices. Some modules include an LED per channel that indicates the state of the channel. It supports input, output, or a combination of digital lines, and they can interact with a variety of voltages and logic levels, so they are well-suited for a variety of benchtop and industrial environments. Additionally, the C Series Digital Module also offers isolation options and sinking or sourcing capabilities to add further protection to your digital I/O application. When you use the C Series Digital Module with CompactRIO, you can use LabVIEW FPGA to create custom high-speed counter/timers, digital communication protocols, pulse generation, and more.The C Series Digital Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
