NI NI-9216 C Series Temperature Input Module (8-Channel, 400 S/s, Spring Terminal) | EMIN.CO.TH

Temperature
NI NI-9216 C Series Temperature Input Module (8-Channel, 400 S/s, Spring Terminal)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Product image

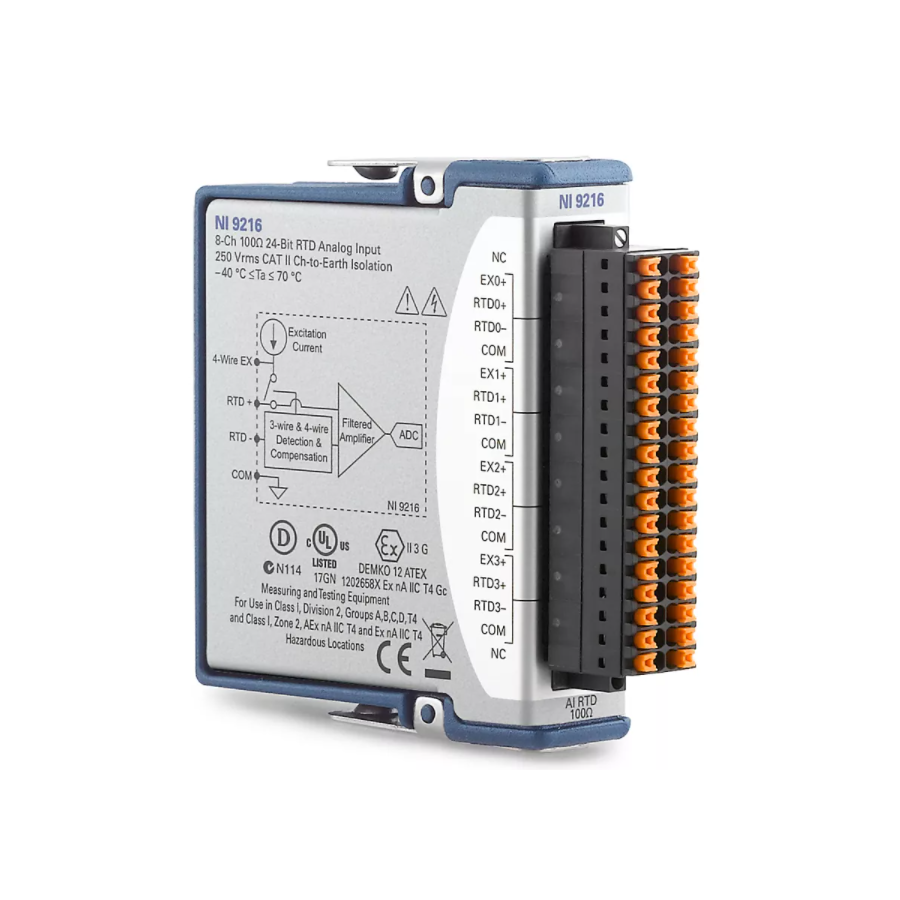

NI NI-9216 C Series Temperature Input Module (8-Channel, 400 S/s, Spring Terminal)

ManufacturerNI(View more products from this manufacturer)

ModelNI-9216

P/N785186-01

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Maximum Number of Differential Analog Input Channels: 8

Maximum Sample Rate: 400 S/s

Analog Input Isolation: 250 Vrms Ch-Earth Ground Isolation

Example of Measurement Accuracy: 0.15 °C

Supported Sensors: PT100 RTD

Front Connection Type: Spring Terminal

Conformal Coated: No

Enclosed: Yes

Supported Hardware Platform: CompactDAQ CompactRIO

Kit Contents

• NI 9216

• NI 9216 Getting Started Guide

Accessories

• NI 9974 Spring-Terminal Block (with Spring-Terminal)

Takes measurements from thermocouples and resistance temperature detectors (RTDs) for CompactDAQ or CompactRIO systems.

The C Series Temperature Input Module features up to 16 channels of temperature input from either thermocouples or RTDS. This module can include anti-aliasing filters, open-thermocouple detection, and cold-junction compensation. Additionally, the module also feature isolation for safety, noise immunity, and high common-mode voltage range.The C Series Temperature Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
