NGI N9132-06-05 Ultra-high Integration Dual-quadrant Modular Battery Simulator (6V/±5A/32CH)

6V/±5A/32CH Battery simulator

Voltage accuracy： 0.1mV

Battery Simulator Module Specification

Model: NB101-06-05-A

General Specifications:

Current: ±5A/CH

Voltage: 6V/CH

Power: 30W/CH

Channels: 4CH

CV (Constant Voltage) Mode:

Range: 0-6V

Setting Resolution: 0.01mV

Setting Accuracy (23±5°C): 0.1mV

Readback Resolution: 0.01mV

Readback Accuracy (23±5°C): 0.1mV

Temperature Coefficient (0-40°C): 20ppm/°C

Voltage Ripple Noise: ≤ 2mVrms

CC (Constant Current) Mode:

Range 1:

Range: -5 to 5A

Setting Resolution: 0.1mA

Setting Accuracy (23±5°C): 5mA

Readback Resolution: 0.1mA

Readback Accuracy (23±5°C): 5mA

Range 2:

Range: -1 to 1mA

Setting Resolution: 0.1μA

Setting Accuracy (23±5°C): 1μA

Readback Resolution: 0.1μA

Readback Accuracy (23±5°C): 1μA

General CC:

Temperature Coefficient (0-40°C): 50ppm/°C

Dynamic Characteristics:

Voltage Rise Time: ≤ 40μs (No load/Pure resistive full load, 10%-90%)

Voltage Fall Time: ≤ 100μs (No load/Pure resistive full load, 90%-10%)

Transient Recovery Time: < 100μs

Fault Simulation:

Supportable Functions: Positive and negative short circuit, positive and negative open circuit, polarity reversal simulation.

Other Specifications:

Isolation (output to ground): 2000V DC

Isolation (channel to channel): 500V DC

Working Temperature: 0°C to 40°C

Storage Temperature: -20°C to 60°C

Operating Environment: Altitude < 2000m; Humidity 5%-90%RH (no condensation)

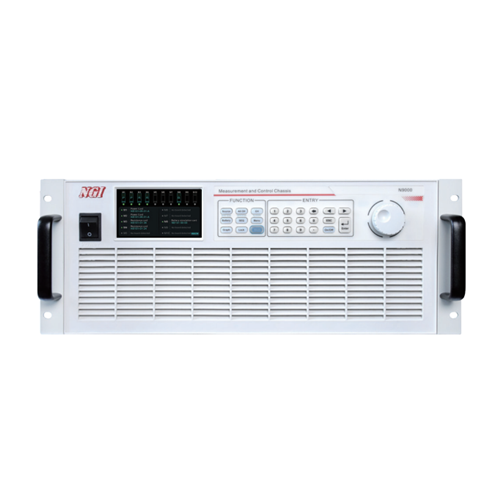

Dimension: Single module single slot (One N9000 chassis supports 9 modules)
