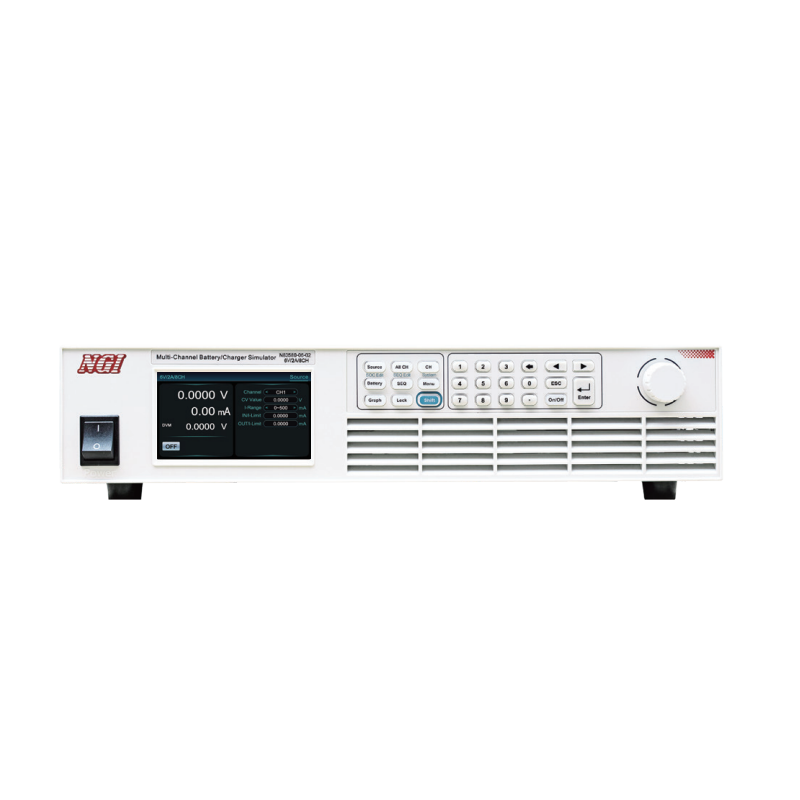

NGI N83580-05-05 High-Performance Multi-channel Programmable Battery Simulator (±5A/CH, 5V/CH, 25W/CH, 8CH)

Current: ±5A/CH

Voltage: 5V/CH

Power: 25W/CH

Channels: 8CH

CV Mode

Range: 0~5V

Setting Resolution: 0.1mV

Setting Accuracy (23±5℃): 0.6mV

Readback Resolution: 0.1mV

Readback Accuracy (23±5℃): 0.6mV

Voltage Setting Time: ≤10ms

Load Regulation: 0.01%+1mV

Line Regulation: 0.01%+0.1mV

Temperature Coefficient (0~40℃): 25ppm/℃

Voltage Ripple Noise (20Hz-20MHz): ≤2mVrms

Current Measurement

Range 1

Range: -5~5A

Resolution: 0.1mA

Accuracy (23±5℃): 5mA

Temperature Coefficient (0~40℃): 50ppm/℃

Range 2

Range: -500mA~500mA

Resolution: 0.01mA

Accuracy (23±5℃): 500μA

Temperature Coefficient (0~40℃): 50ppm/℃

Range 3

Range: -1~1mA

Resolution: 0.1μA

Accuracy (23±5℃): 1μA

Temperature Coefficient (0~40℃): 50ppm/℃

Range 4

Range: -0.1~0.1mA

Resolution: 10nA

Accuracy (23±5℃): 100nA

Temperature Coefficient (0~40℃): 50ppm/℃

Interface: LAN/RS232/CAN

AC Input: 100~240V AC, current≤5A@220V,≤10A@110V, frequency 47Hz~63Hz

Temperature: Operating temperature: 0℃~40℃, storage temperature: -20℃~60℃

Operating Environment: Altitude <2000m, relative humidity: 5%~90%RH(non-condensing), atmospheric pressure: 80~110kPa

Net Weight: Approx. 14.8kg

Dimension: 2U, 88.0(H)*482.0(W)with handle*557.0(D)mm
