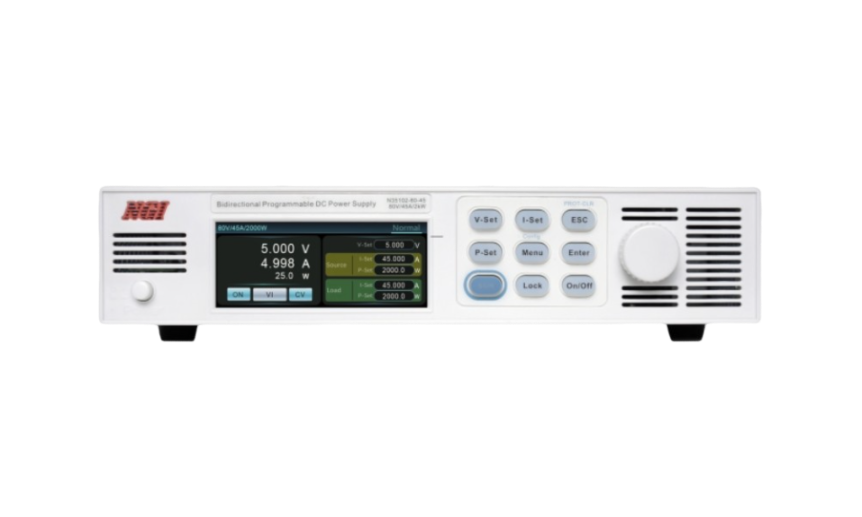

NGI N35100 Bidirectional DC Power Supply (2500W, 80V, 55A)

Rated Value

Voltage: 80V

Current: 55A

Power: 2500W

Voltage Setting

Range: 0-80.8V（101%F.S.）

Resolution 1mV

Accuracy: (23±5℃) 0.02%+0.02%F.S.

Current Setting

Range: 0-55.55A（101%F.S.

Resolution: 1mA

Setting Accuracy(23±5℃): 0.1%+0.1%F.S.

Power Setting

Range: 0-2525W（101%F.S.）

Resolution: 0.1W

Setting Accuracy (23±5℃): 0.5%+0.5%F.S.

Series Internal Resistance

Range: 0-2.5Ω

Resolution: 10mΩ

Setting Accuracy(23±5℃):≤1%F.S.

Load Resistance

Range: 0.01-800Ω

Resolution: 10mΩ

Setting Accuracy(23±5℃): (Vin/Rset)*0.1%+0.1%IF.S.

Voltage Measurement

Range: 0-80.8V

Resolution: 1mV

Accuracy(23±5℃): ≤0.02%+0.02%F.S.

Temperature Coefficient: ≤30PPM/℃

Current Measurement

Range: 0-55.55A

Resolution: 1mA

Setting Accuracy(23±5℃): ≤0.1%+0.1%F.S.

Temperature Coefficient: ≤50PPM/℃

Output Protection Range

OVP: 0~80.8V（101%F.S.）

OCP: 0~55.55A（101%F.S.）

OPP 0~2525W（101%F.S.）

Line Regulation

Voltage: ≤0.01%+0.01%F.S.

Current: ≤0.03%+0.03%F.S.

Load Regulation

Voltage: ≤0.01%+0.01%F.S.

Current: ≤0.05%+0.05%F.S
