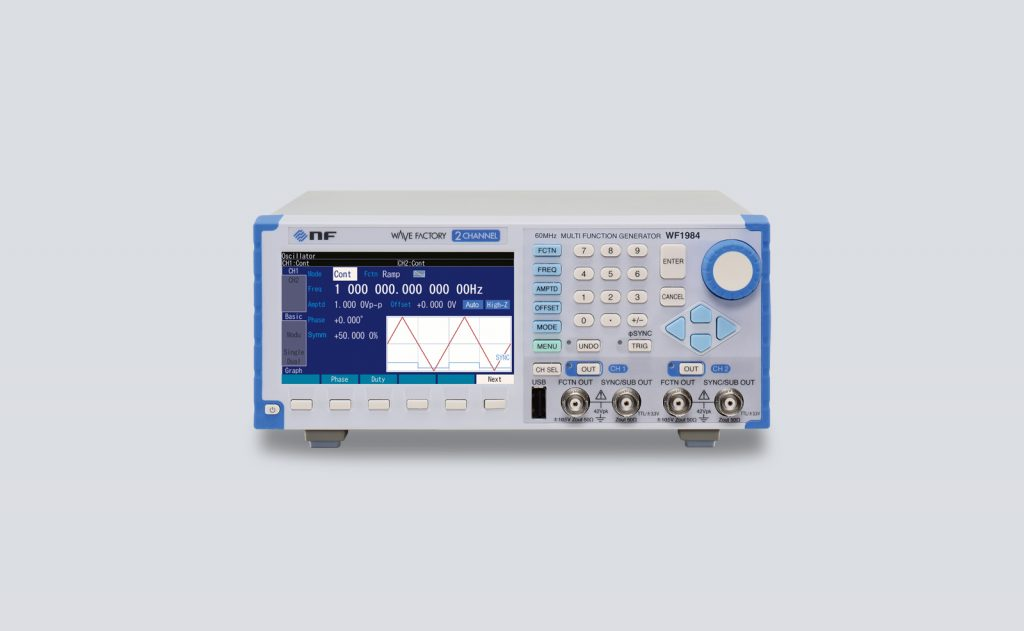

NF WF1984 Multifunction Generator (2CH; 0 to 60 MHz)

Number of channels: 2-channels

Frequency range: 0 to 60 MHz; Resolution 0.01 μHz

Output voltage: 0 Vp-p to 21 Vp-p/open

Amplitude resolution: 16 bit

Arbitrary waveform: 64 Mi words/waveform

Low distortion and low jitter

Floating between input and output, isolated between channels (2-channel model)

Sub-output – Independent from the main output

26 types of parameter-variable waveforms

Pulse edge variable function

High-speed and large-capacity arbitrary waveforms 240 M samples/sec., 64 Mi words/waveform(WF1983/WF1984)

Syncrator function
