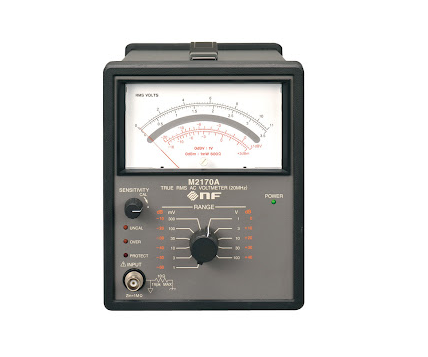

NF M2170A True RMS AC Voltmeter (1mV ~ 100Vrms/F.S.)

Voltage measurement range: 1mV to 100Vrms/F.S.

Frequency range: 5Hz to 20MHz

Input impedance: approx. 1MΩ (25pF max).

Max. inuput voltage: 1V to 100V range : AC ± DC peak value ± 250V

1mV to 300mV range : AC ± 10Vpeak, AC ± DC peak value ± 250V

Indication accuracy (reference to F.S.):

30Hz to 1MHz ± 3%

10Hz to 10MHz ± 5%

5Hz to 20MHz ± 10%

AC output: 1V (F.S., no load), output impedance : approx. 50Ω typ.

DC output: 1V (F.S., no load), output impedance : approx. 50Ω typ.

Power requirements: AC100V, 120V, 230V, switchable

Dimensions (mm): 140(W) X 177(H) X 300(D)

Weight: approx. 3.7kg
