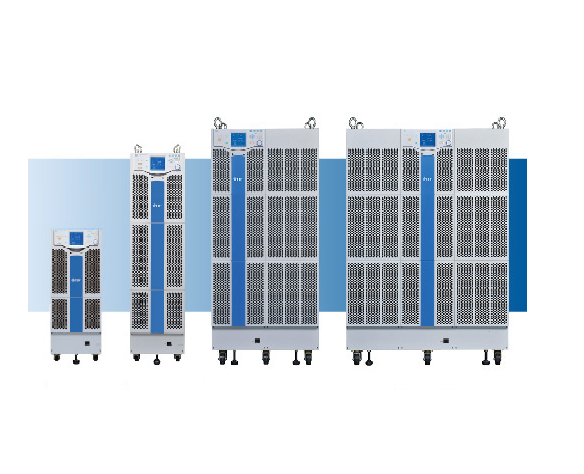

Output power: 18 kVA
AC output:
+ Voltage setting range:
Phase voltage: 0.0 V to 160.0 V / 0.0 V to 320.0 V, arbitrary wave: 0.0 Vp-p to 454.0 Vp-p / 0.0 Vp-p to 908.0 Vp-p, setting resolution: 0.1 V
Line voltage:
1P3W: 0.0 V to 320.0 V / 0.0 V to 640.0 V (balanced mode and sine wave only) setting resolution: 0.2 V
3P4W: 0.0 V to 277.2 V / 0.0 V to 554.2 V (balanced mode and sine wave only) setting resolution: 0.2 V
+ Max. current:
single-phase: 180 A / 90 A
polyphase: 60 A / 30 A
+ Max. peak current: peak value (Apk) which is three times of the Max. current
+ Short reverse power flow : 100% or less of max. current (RMS) (reverse power flow time ≤ 20 ms, discontinuous, 40°C or lower)
+ Load power factor: 0 to 1 (phase lead or phase lag, 45 Hz to 65 Hz, external power injection and regeneration are not available.)
+ Frequency setting range : 40.00 Hz to 550.00 Hz (AC mode), 1.00 Hz to 550.00 Hz (ACDC mode), setting resolution: 0.01 Hz
+ Output waveform : Sine wave, arbitrary wave (16 types), clipped sine wave (3 types)
DC output:
+ Output power: 18 kW
+ Voltage setting range : −227 V to +227 V / −454 V to +454 V, setting resolution: 0.1 V
+ Max. source current: 180 A / 90 A
+ Short sink current : 100% or less of max. source current (reverse power flow time ≤ 20 ms, discontinuous, 40°C or lower)
Stability and distortion (phase voltage):
+ Output voltage stability:
Fluctuation with input voltage: within ±0.15%
Fluctuation with output current: DC (only single-phase output) within ±0.15 V / ±0.30 V, 45 Hz to 65 Hz within ±0.15 V / ±0.30 V, 40 Hz to 550 Hz within ±0.5 V / ±1.0 V
+ Distortion: 0.5% or lower
Power input:
+ Voltage (specified on order): Overvoltage category II
1P2W input: -
3P3W input : -
3P4W input: 380 V ±15%
+ Frequency, power factor, efficiency: 50 Hz / 60 Hz ±2 Hz, 0.90 or higher (typ., AC200 V input), 77% or higher (typ.)
+ Max. power consumption: 27 kVA or lower
Dimensions (W × H × D) (mm): 910 × 1580 × 803
Weight : approx. 350 kg
