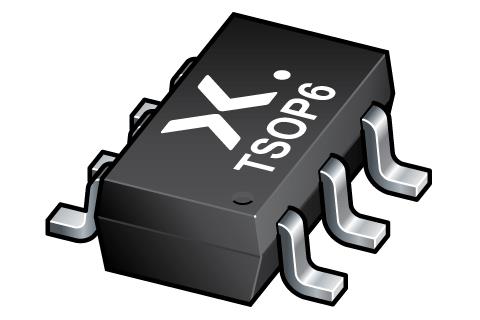

Nexperia PMN100EPAX MOSFETs 60 V, N-channel Trench MOSFET
Manufacturer: Nexperia Model: PMN100EPAX - Contact
Fall Time: 25 ns
Rise Time: 7 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT
Transistor Type: 1 P-Channel
Qg - Gate Charge: 11 nC
Number of Channels: 1 Channel
Transistor Polarity: P-Channel
Pd - Power Dissipation: 1.7 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 7 ns
Typical Turn-Off Delay Time: 29 ns
Id - Continuous Drain Current: 2.5 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 6 S
Rds On - Drain-Source Resistance: 130 mOhms
Vds - Drain-Source Breakdown Voltage: 60 V
Vgs th - Gate-Source Threshold Voltage: 3.2 V
